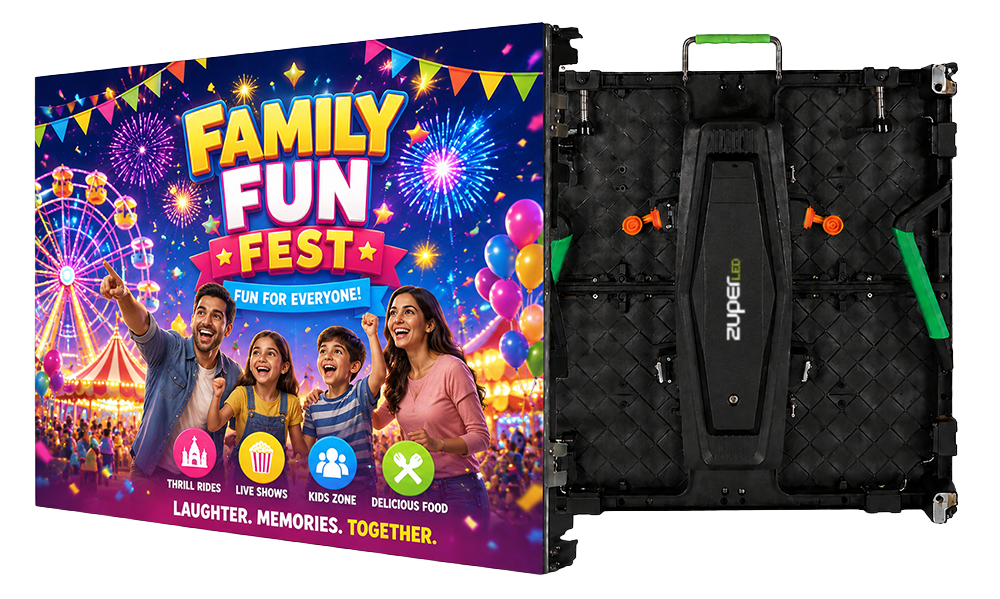

P3.79 Outdoor Rental LED Display
Rental LED Display Solutions
Rental 576×576 Series | Outdoor Rental LED Display
Concerts, Outdoor Events, Touring Productions, Festival Stages
P3.79 Outdoor Rental LED
SMD1921 / SMD2727, Die-Cast Aluminum Cabinet, High Refresh Rental LED
Transforming Outdoor Events with High-Performance Rental LED Displays

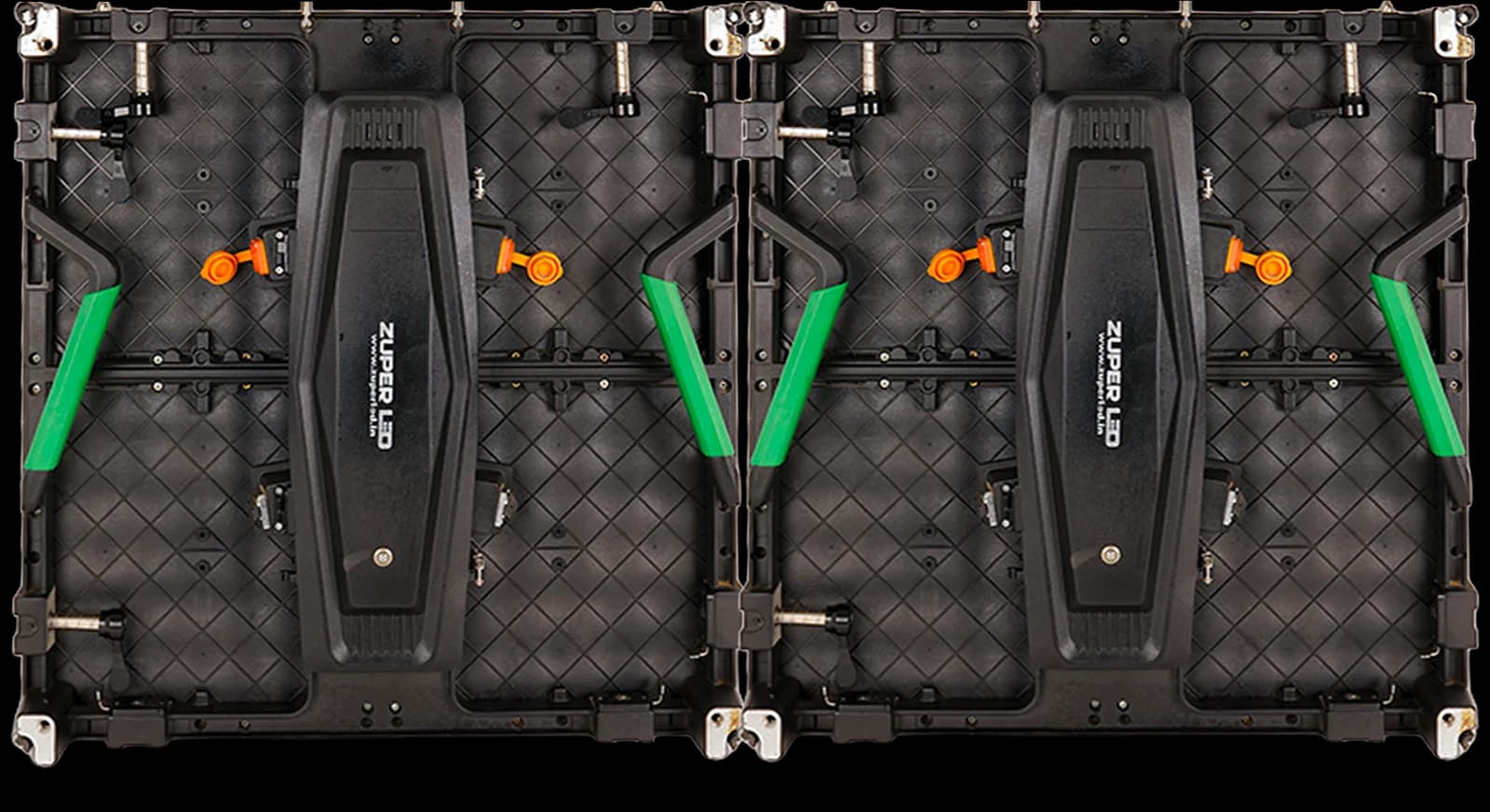

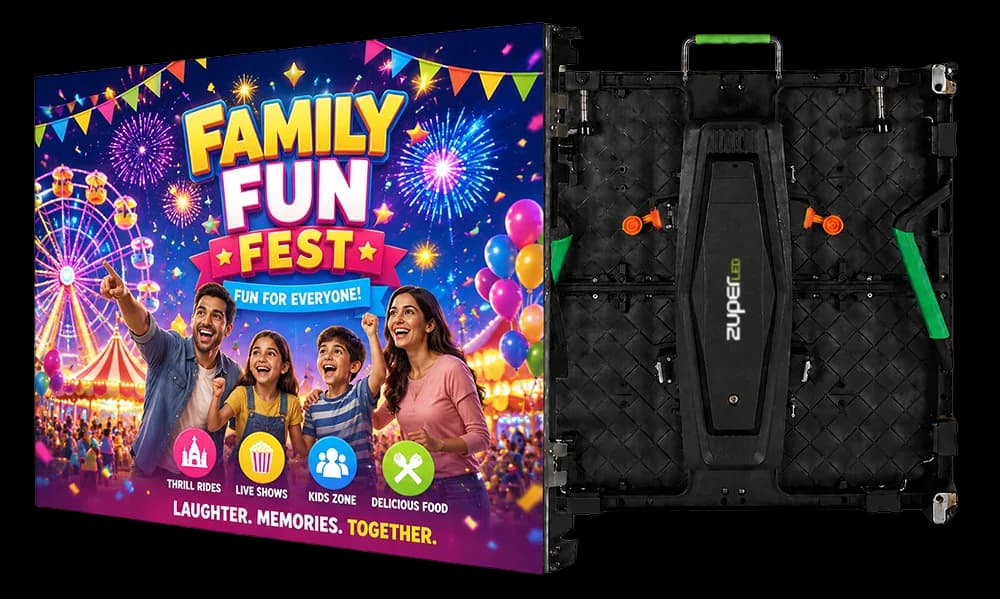

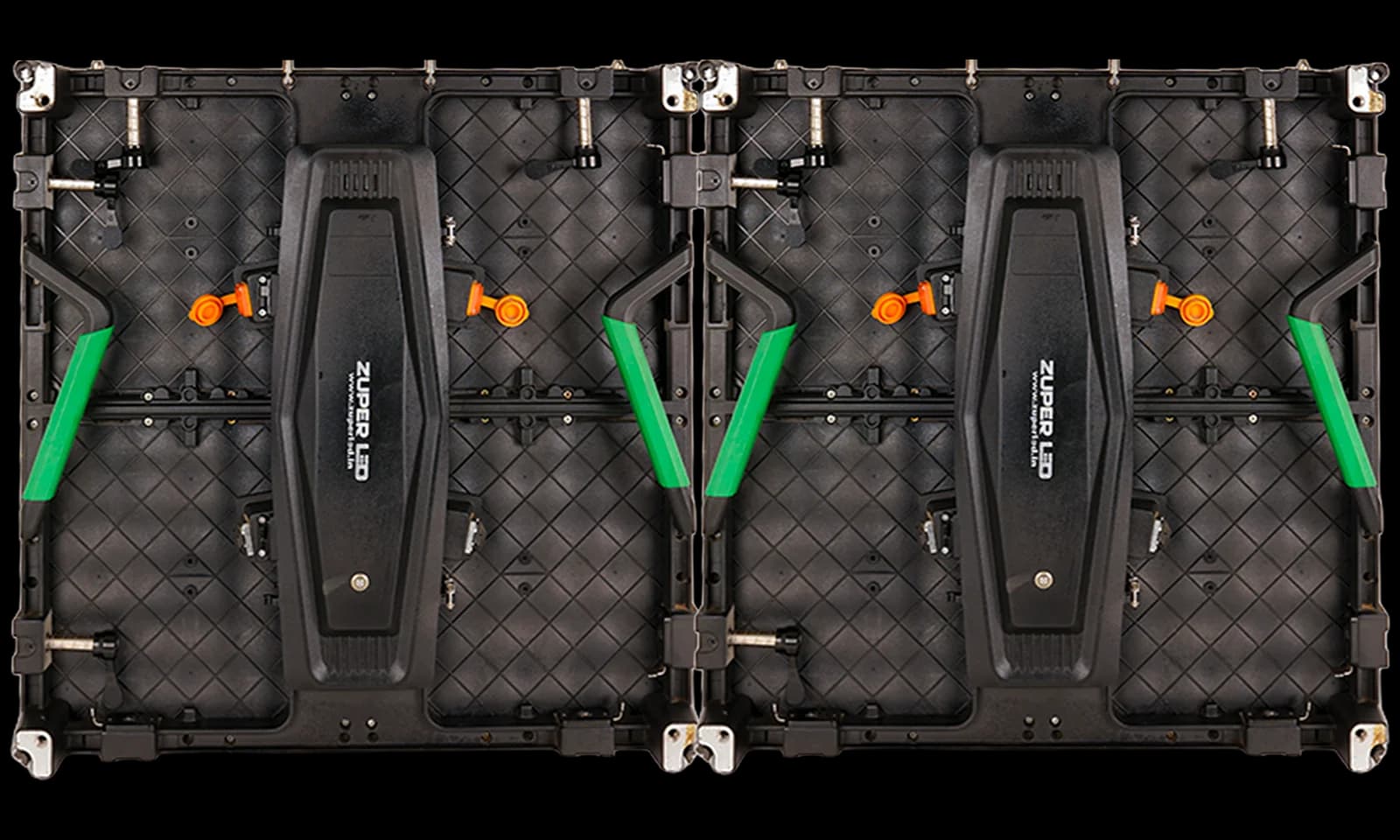

Our P3.79 Outdoor Rental LED display is engineered for concerts, touring productions, festivals, and outdoor stage environments requiring high brightness and seamless visual performance. Designed with rugged die-cast aluminum cabinets and precision locking systems, it delivers stable and vibrant visuals across demanding outdoor conditions.
Built for professional outdoor rental applications, this display ensures rapid installation, easy transportation, and dependable operation during continuous live event usage. Its high refresh rate and modular cabinet alignment provide smooth and flicker-free visuals ideal for live productions and broadcast applications.
| Parameters | Specifications |
|---|---|
| Placement(Outdoor/Indoor | Die Cast IP65 -outdoor |
| Pixel Pitch(mm) | 3.79 mm |
| LED Configuration | SMD 3 in 1 |
| Light type | SMD2121 |
| 1R1G1B | |
| Module Lamp | CUSTOMISED |
| Driver IC | CUSTOMISED |
| Refresh Rate | 3841 - 7680 HZ |
| Module Size(mm) | 288*288mm |
| Module Resolution(dot) | 76*76 |
| Module Pixel | 5776 |
| Pixel Density(dot/㎡) | 69604 dots/sqm |
| Best View distance | ≧4 m |
| Display Thinkness | 83mm |
| Brightness | 5500cd/sqm |
| View Angle | > 140° / > 140° |
| Controllers used for the screen | NOVASTAR |
| Cabinet Size(mm) | 576*576mm |
| Cabinet Resolution(dot) | 152*152 dots |
| Cabinet Weight(kg) | 8.8KG |
| Driving Mode | 1/19 scan |
| Gray Scale | 16bit |
| Power Comsumption(max/sqm) | ≧800W/sqm |
| Power Comsumption(Avg) | 400W/sqm |
| Module Input Voltage | 4.5-5 |
| Input Voltage | 110v~240v |
| Runing Temperature | –20℃～60℃/RH |
| Storage Temperature | –35℃～+70℃ |
| Humidity | 10% ～95% |
| Lifespan | 100,000H |
Engineered for High-Performance Rental Applications
The P3.79 Outdoor Rental LED display is optimized for outdoor event environments requiring strong brightness and stable visual performance. It delivers reliable visuals and seamless operation across live productions and touring installations.
- High brightness designed for outdoor event visibility
- High refresh rate for smooth live production visuals

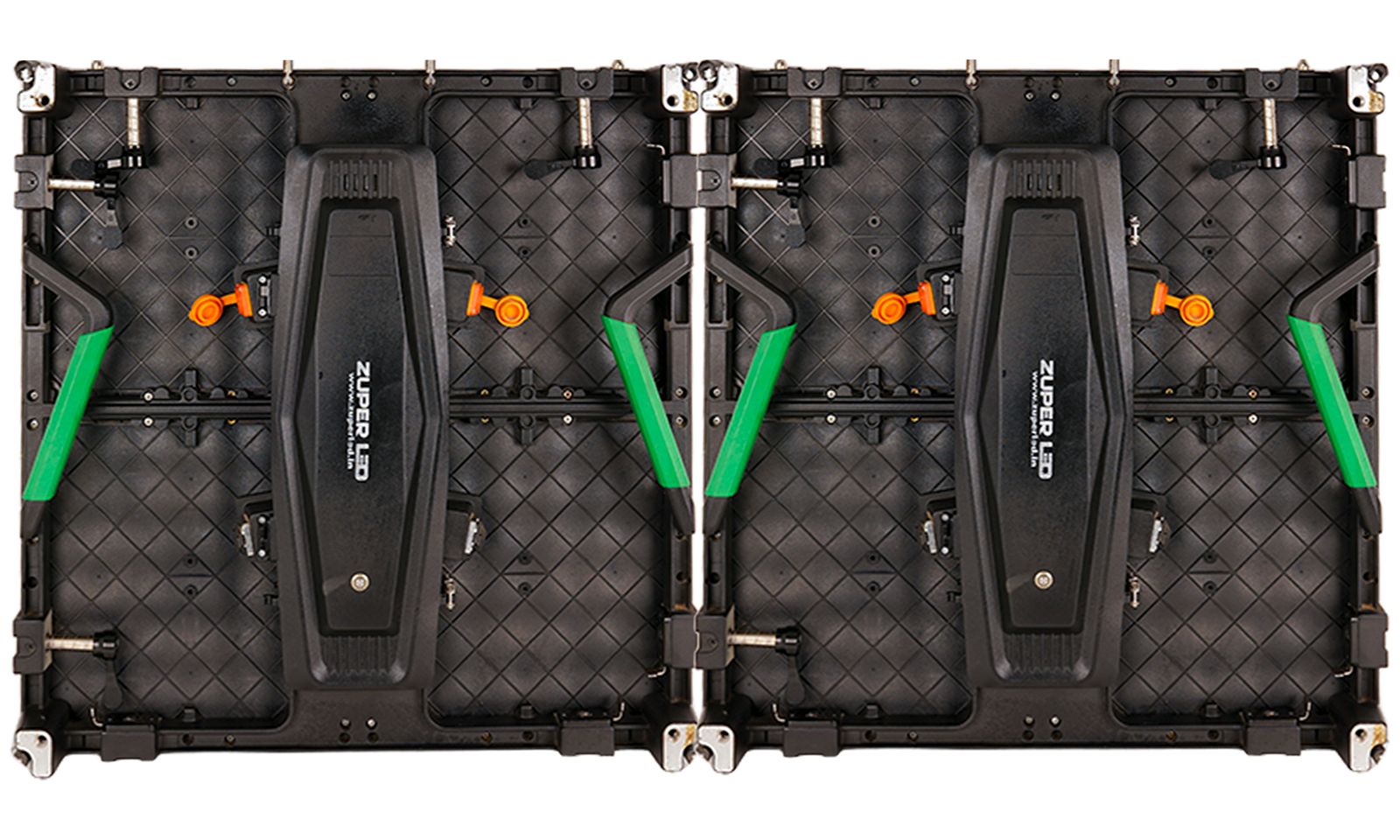

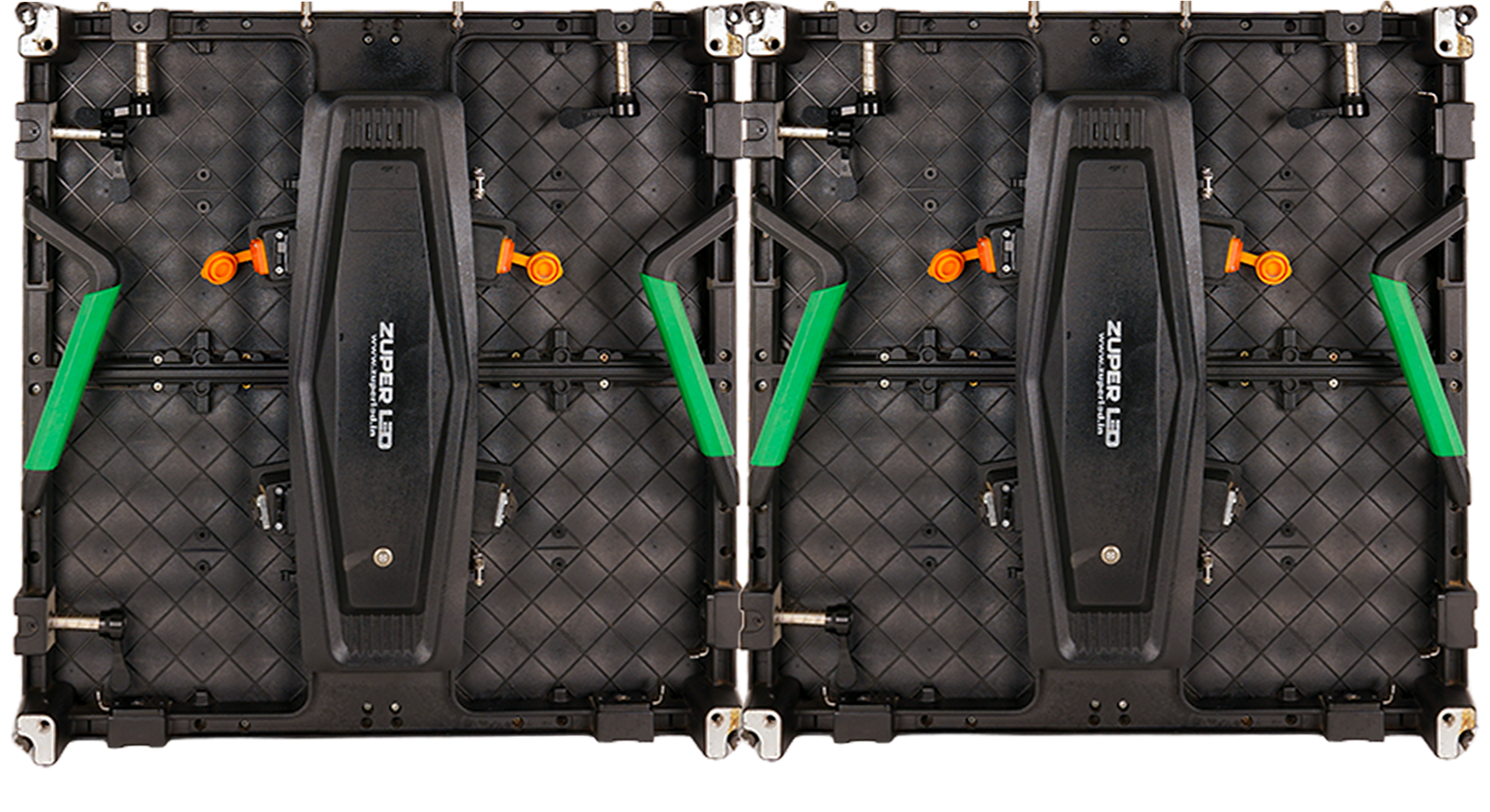

- Precision locking system for seamless screen alignment
- Rugged outdoor cabinet structure for reliable durability
- Modular rental design for scalable stage installations

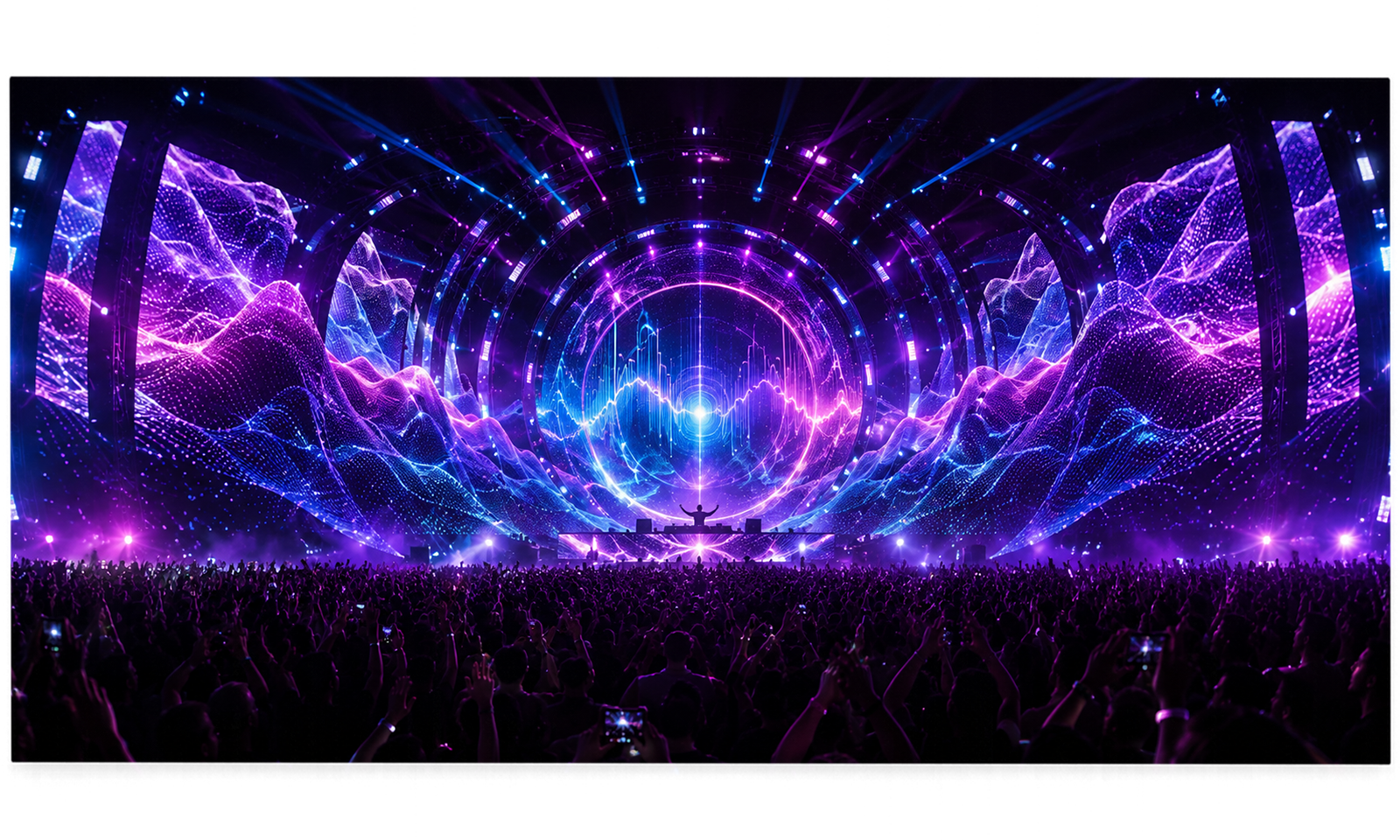

Use Case / Content Display

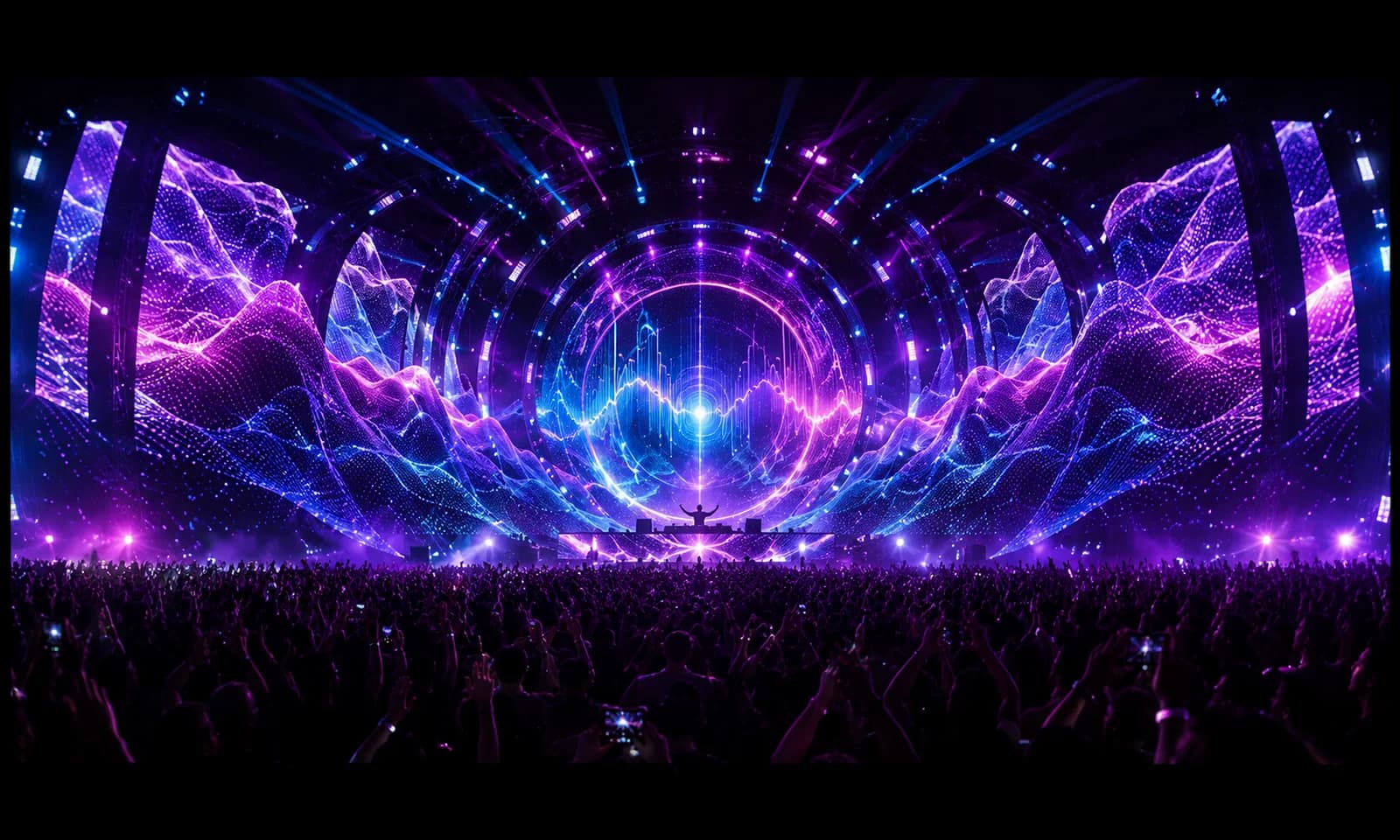

- Concert stages (example: outdoor performance LED walls)
- Touring productions (example: live event stage backdrops)
- Festivals (example: large-scale outdoor display systems)
- Sports events (example: temporary stadium LED installations)
- Broadcast productions (example: outdoor live production displays)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 3.79 mm
- Brightness: ≥4500–5500 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥4 meters
- Cabinet Size: 576 × 576 mm
- Power Consumption: 280W (avg)
Final Feature Block
- Outdoor rental cabinet designed for demanding live productions
- High brightness ensures strong outdoor visibility performance
- Seamless modular alignment for large-scale stage installations
- Rugged weatherproof structure for reliable event operation
- Flexible cabinet system for scalable rental applications
