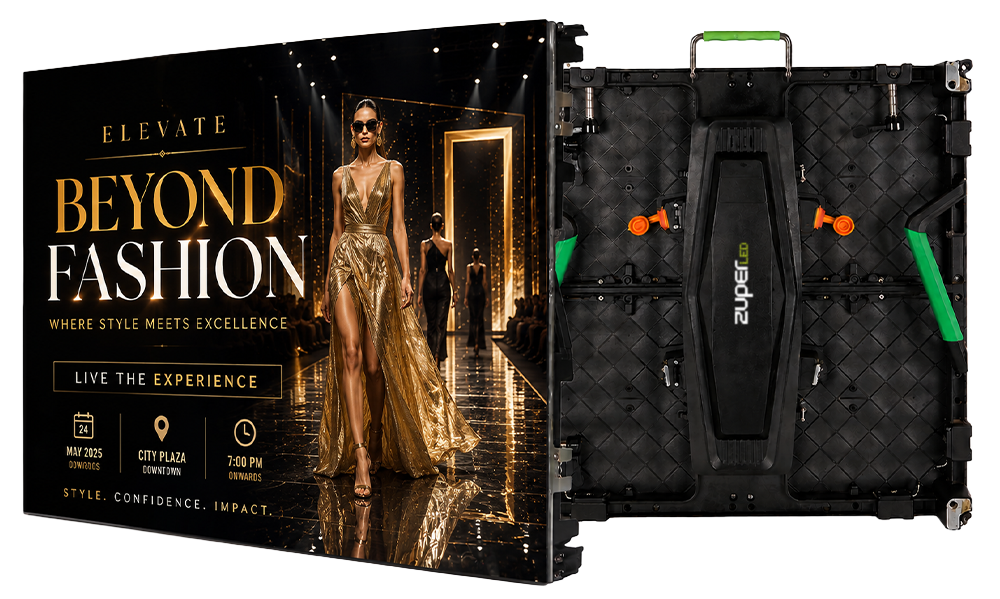

P3.84 Indoor Rental LED Display
Rental LED Display Solutions
Rental 576×576 Series | Indoor Rental LED Display
Concerts, Exhibitions, Corporate Events, Stage Productions
P3.84 Indoor Rental LED/strong>
SMD2121, Die-Cast Aluminum Cabinet, High Refresh Rental LED
Transforming Indoor Events with Seamless Rental LED Displays

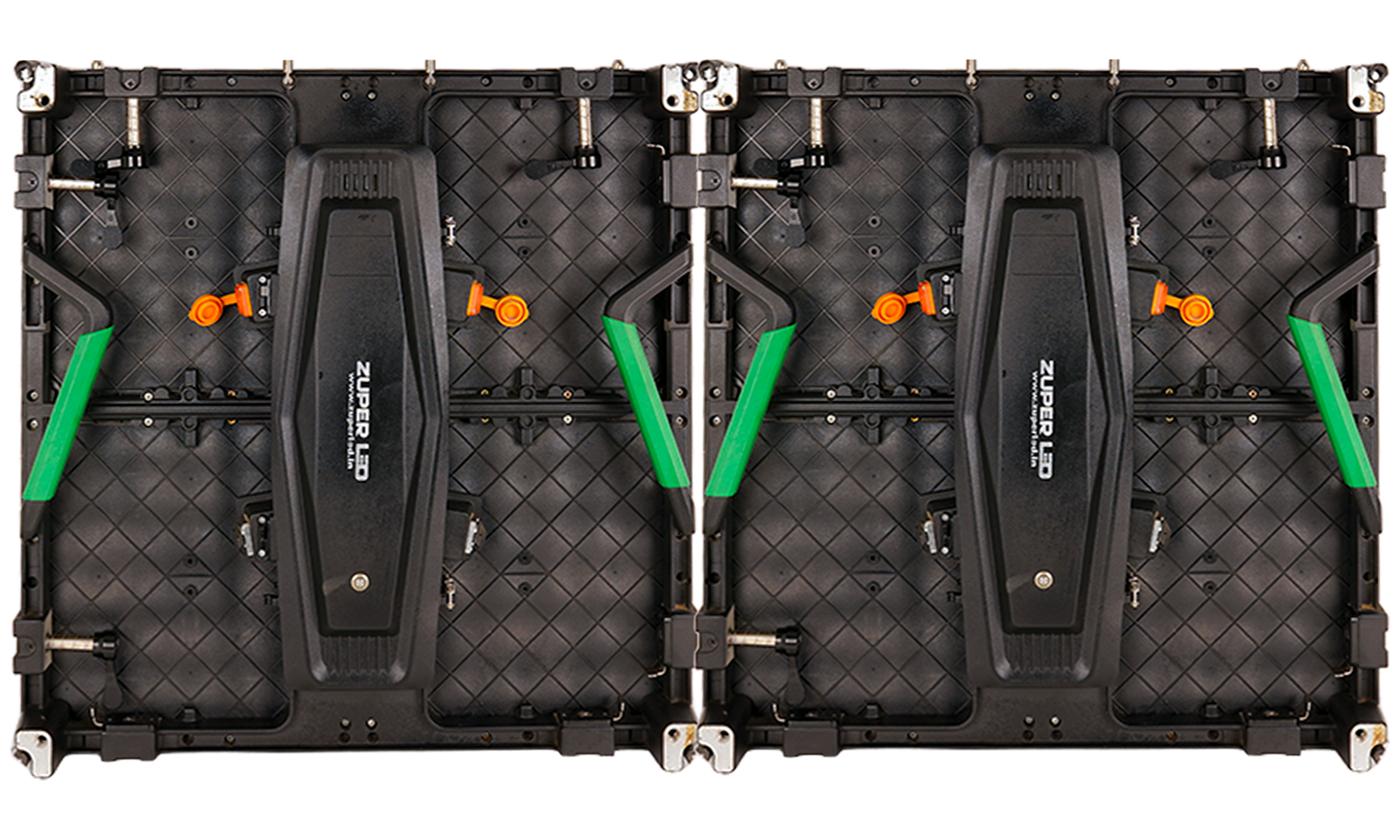

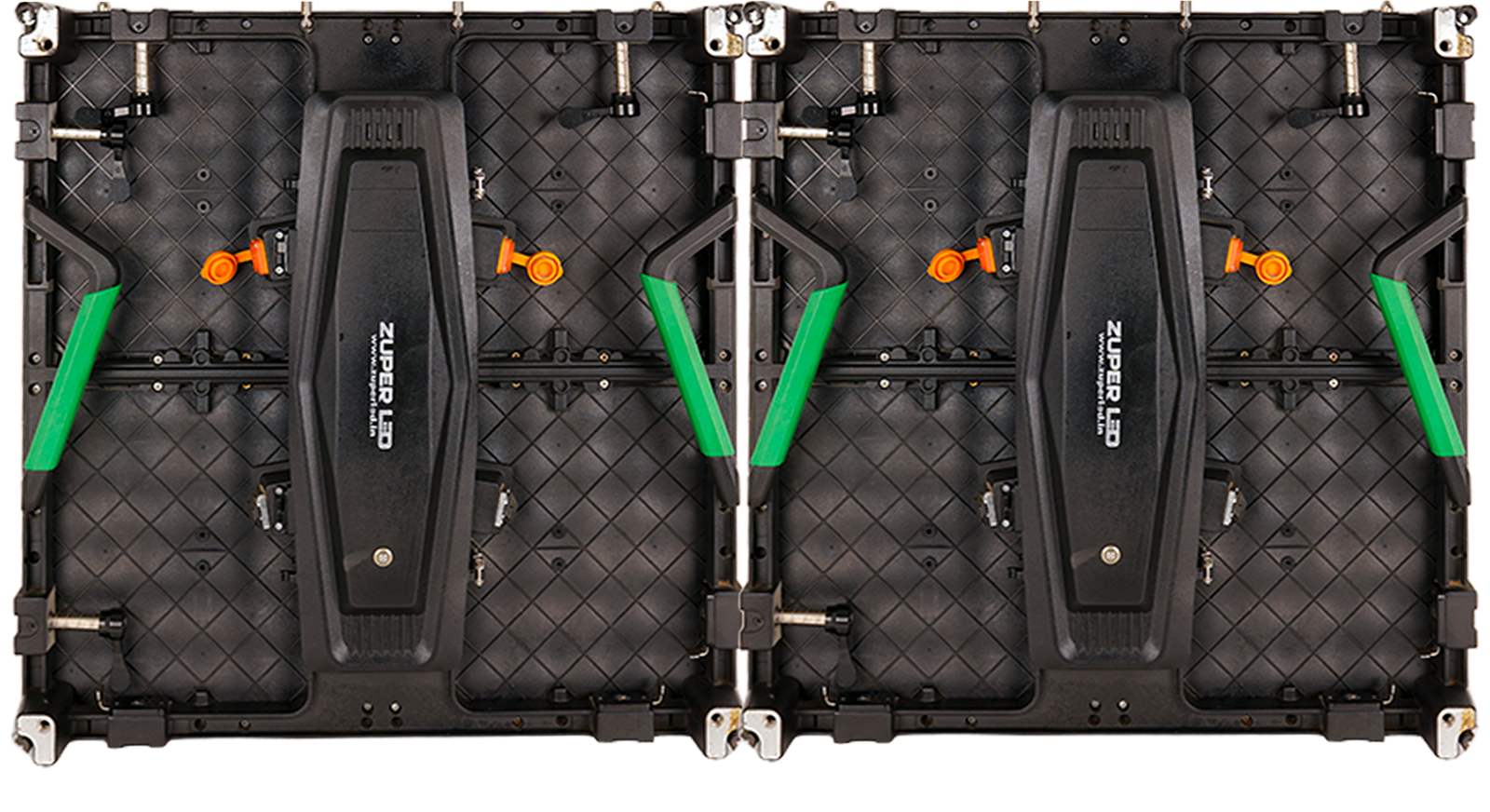

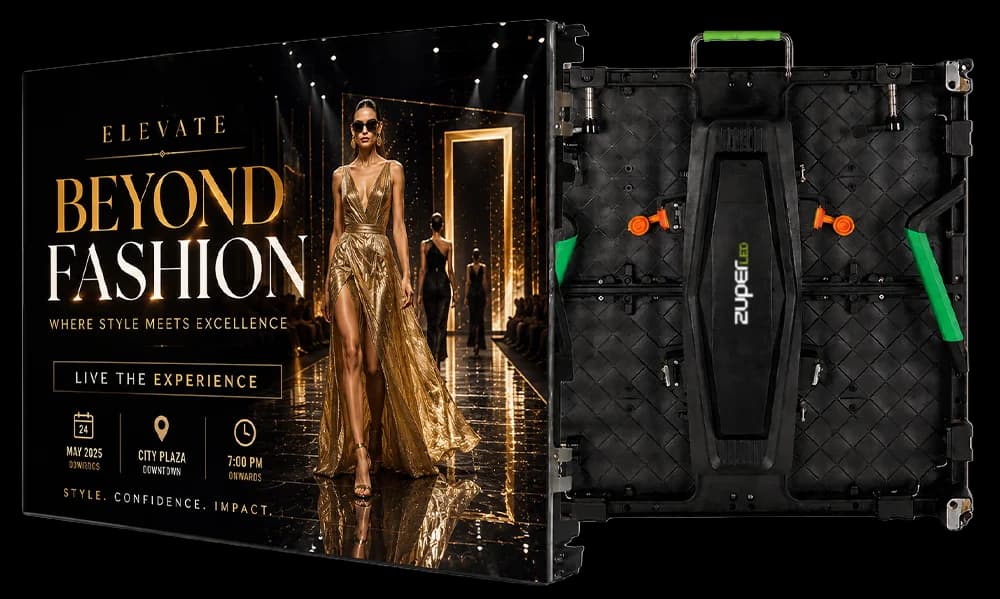

Our P3.84 Indoor Rental LED display is engineered for concerts, exhibitions, corporate events, and live stage productions requiring seamless visuals and efficient installation workflows. Designed with lightweight die-cast aluminum cabinets and precision locking systems, it delivers vibrant visuals with stable and reliable performance.
Built for indoor rental environments, this display ensures smooth operation, easy transportation, and rapid deployment across demanding event setups. Its high refresh rate and modular cabinet alignment provide flicker-free visuals ideal for live productions and broadcast environments.
| Parameters | Specifications |
|---|---|
| Placement(Outdoor/Indoor | Die Cast IP42 Indoor |
| Pixel Pitch(mm) | 3.84 mm |
| LED Configuration | SMD 3 in 1 |
| Light type | SMD2020 |
| 1R1G1B | |
| Module Lamp | CUSTOMISED |
| Driver IC | CUSTOMISED |
| Refresh Rate | 3844 - 7680 HZ |
| Module Size(mm) | 288*288mm |
| Module Resolution(dot) | 75*75 |
| Module Pixel | 5625 |
| Pixel Density(dot/㎡) | 67600 dots/sqm |
| Best View distance | ≧4 m |
| Display Thinkness | 83mm |
| Brightness | 1000cd/sqm |
| View Angle | > 140° / > 140° |
| Controllers used for the screen | NOVASTAR |
| Cabinet Size(mm) | 576*576mm |
| Cabinet Resolution(dot) | 150*150 dots |
| Cabinet Weight(kg) | 8.8KG |
| Driving Mode | 1/15 scan |
| Gray Scale | 16bit |
| Power Comsumption(max/sqm) | ≧500W/sqm |
| Power Comsumption(Avg) | 250W/sqm |
| Module Input Voltage | 4.5-5 |
| Input Voltage | 110v~240v |
| Runing Temperature | –20℃～60℃/RH |
| Storage Temperature | –35℃～+70℃ |
| Humidity | 10% ～95% |
| Lifespan | 100,000H |
Engineered for High-Performance Rental Applications
The P3.84 Indoor Rental LED display is optimized for indoor event environments requiring stable visuals and seamless stage performance. It delivers reliable operation and high visual clarity across live productions and exhibition installations.
- Lightweight cabinet structure for rapid indoor event installation
- High refresh rate for smooth live production visuals

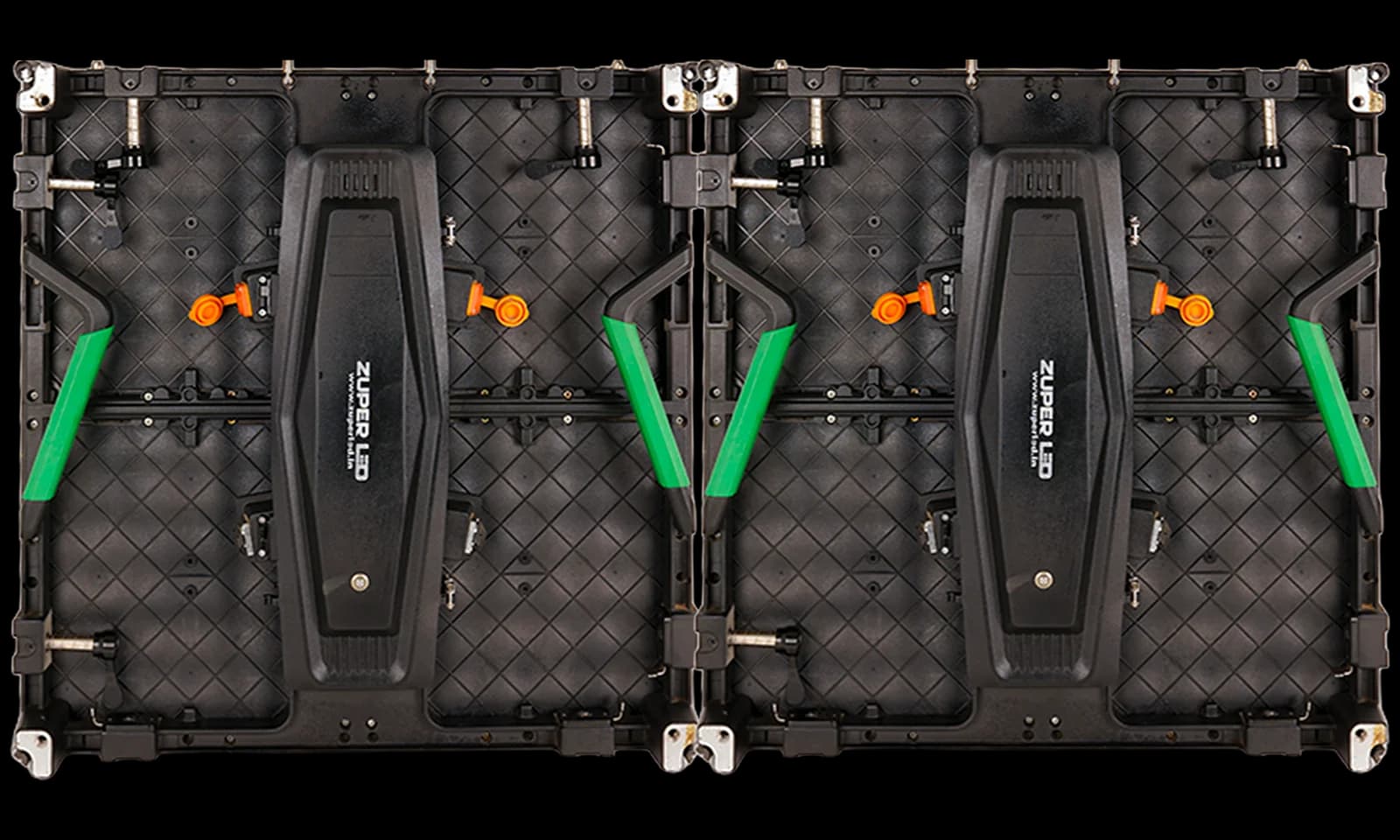

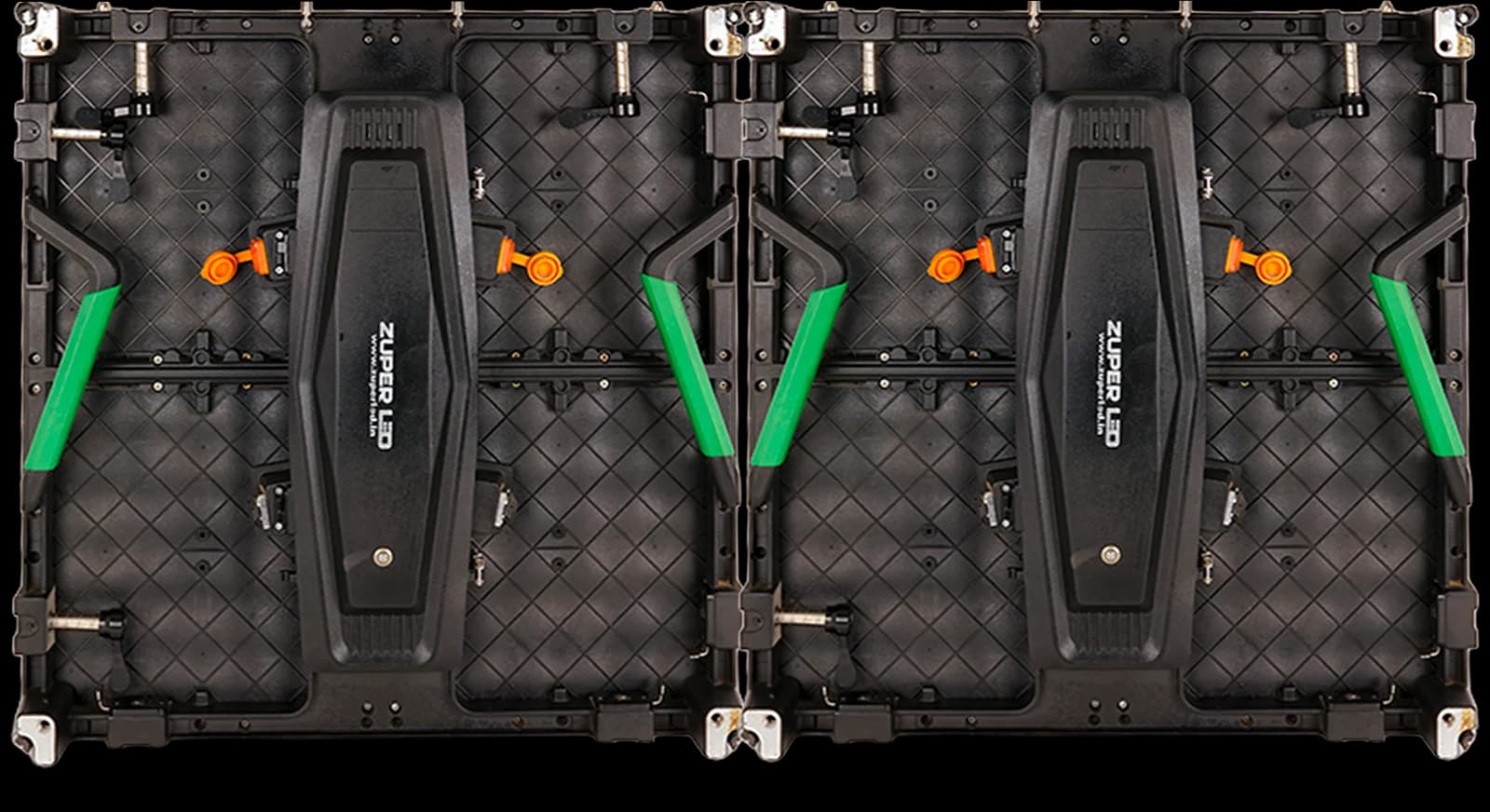

- Precision locking system for seamless screen alignment
- Stable indoor performance with reliable visual output
- Modular rental design for scalable event installations
Use Case / Content Display
- Concert stages (example: indoor performance LED backdrops)
- Exhibitions (example: product showcase LED displays)
- Corporate events (example: presentation video walls)
- Weddings (example: indoor stage visual backgrounds)
- XR productions (example: immersive virtual production setups)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 3.84 mm
- Brightness: ≥1000–1200 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥4 meters
- Cabinet Size: 576 × 576 mm
- Power Consumption: 220W (avg)
Final Feature Block
- Indoor rental cabinet designed for live production environments
- High refresh performance for seamless stage visuals
- Lightweight modular design for rapid event deployment
- Stable indoor structure for continuous event operation
- Flexible cabinet system for scalable rental applications
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
