P4 Gold Series DOOH LED
DOOH LED Display Solutions
High-Resolution Gold Series DOOH LED Display
Premium DOOH Advertising, Retail Branding, Smart City Displays, Commercial Media
P4 Gold Series DOOH LED
Aluminum Die-Cast Cabinet, Outdoor IP65 LED, High Refresh Technology
Transforming Advertising with Premium DOOH LED Displays
Our P4 Gold Series DOOH LED Display is engineered for premium outdoor advertising environments requiring high-resolution visuals, seamless cabinet alignment, and reliable outdoor performance. Designed for retail branding, smart city displays, digital billboards, and commercial media installations, it delivers vibrant visuals with seamless playback across demanding outdoor conditions.
Built with precision aluminum die-cast cabinet technology and advanced outdoor LED systems, this display ensures lightweight durability, efficient heat management, and stable operational performance. Its high refresh rate and wide viewing angles provide smooth and flicker-free visuals ideal for modern digital advertising environments.

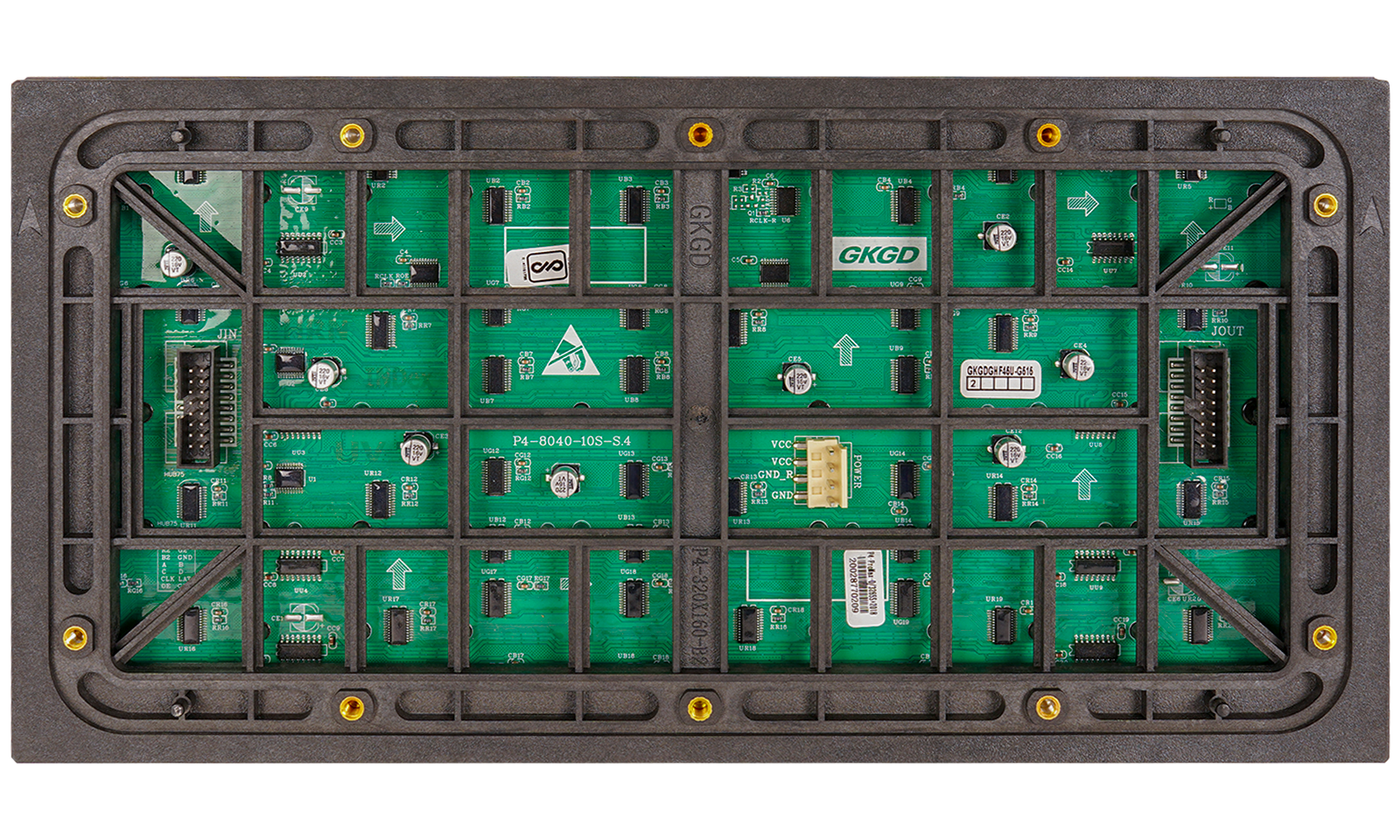

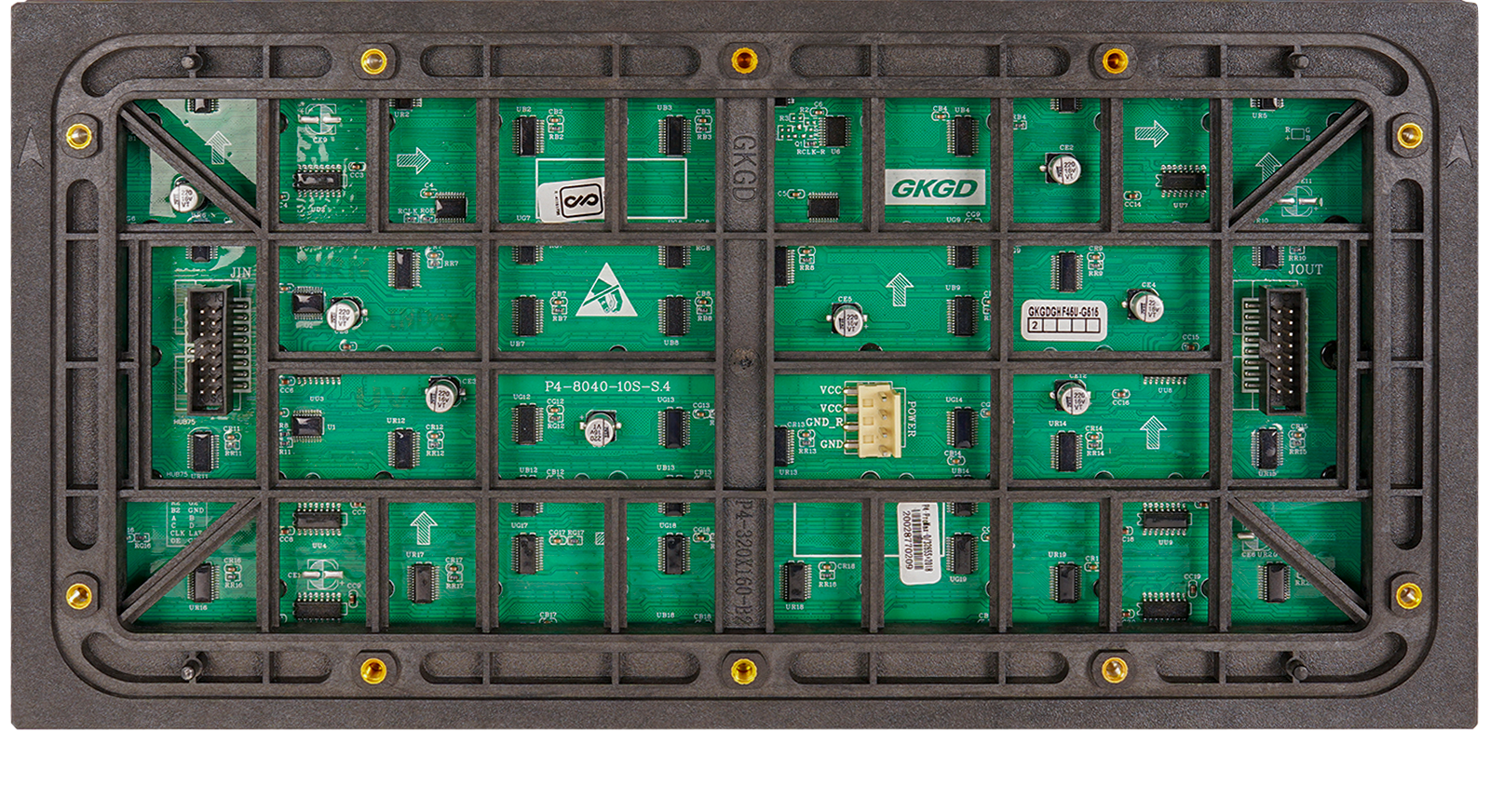

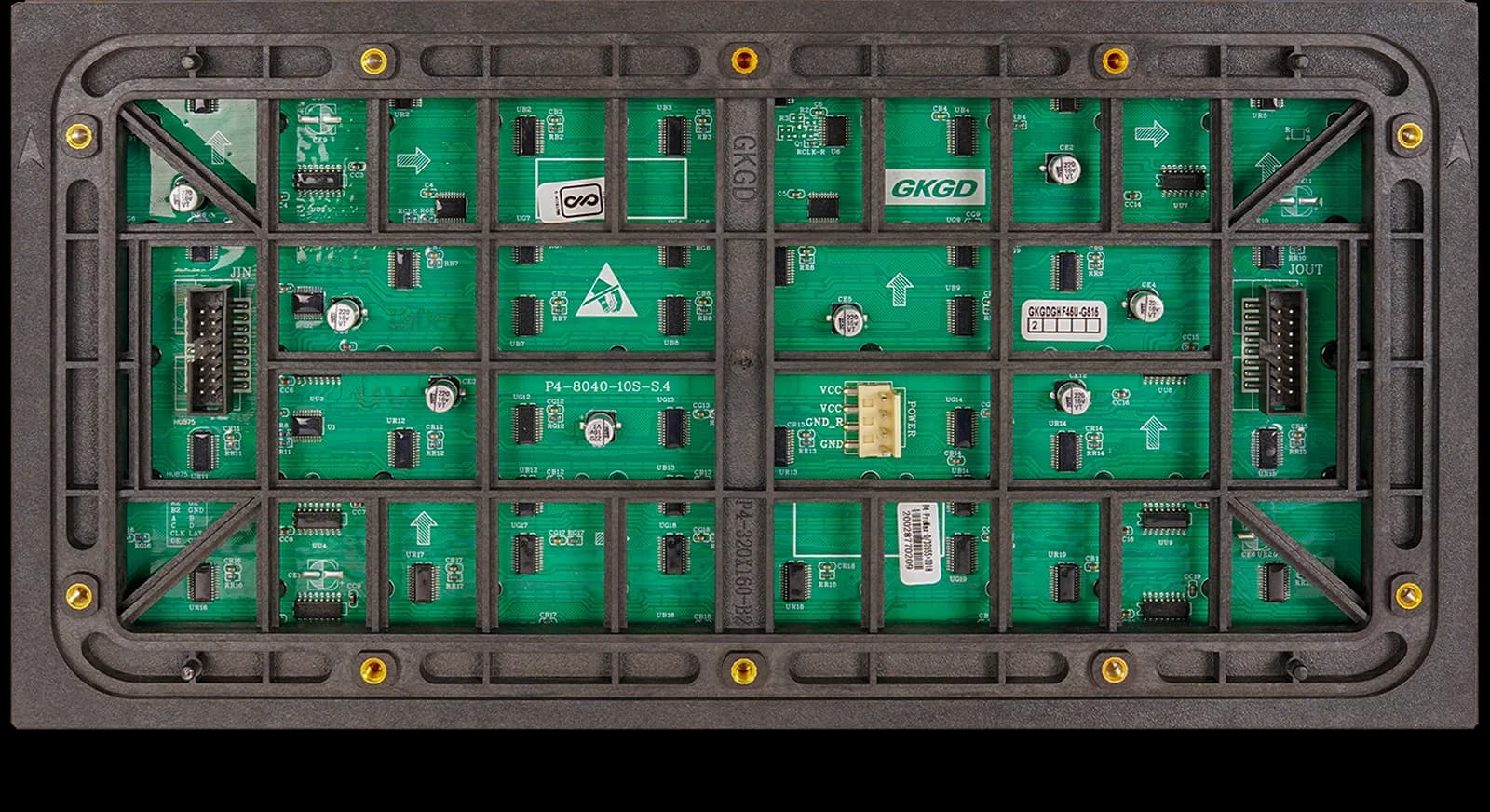

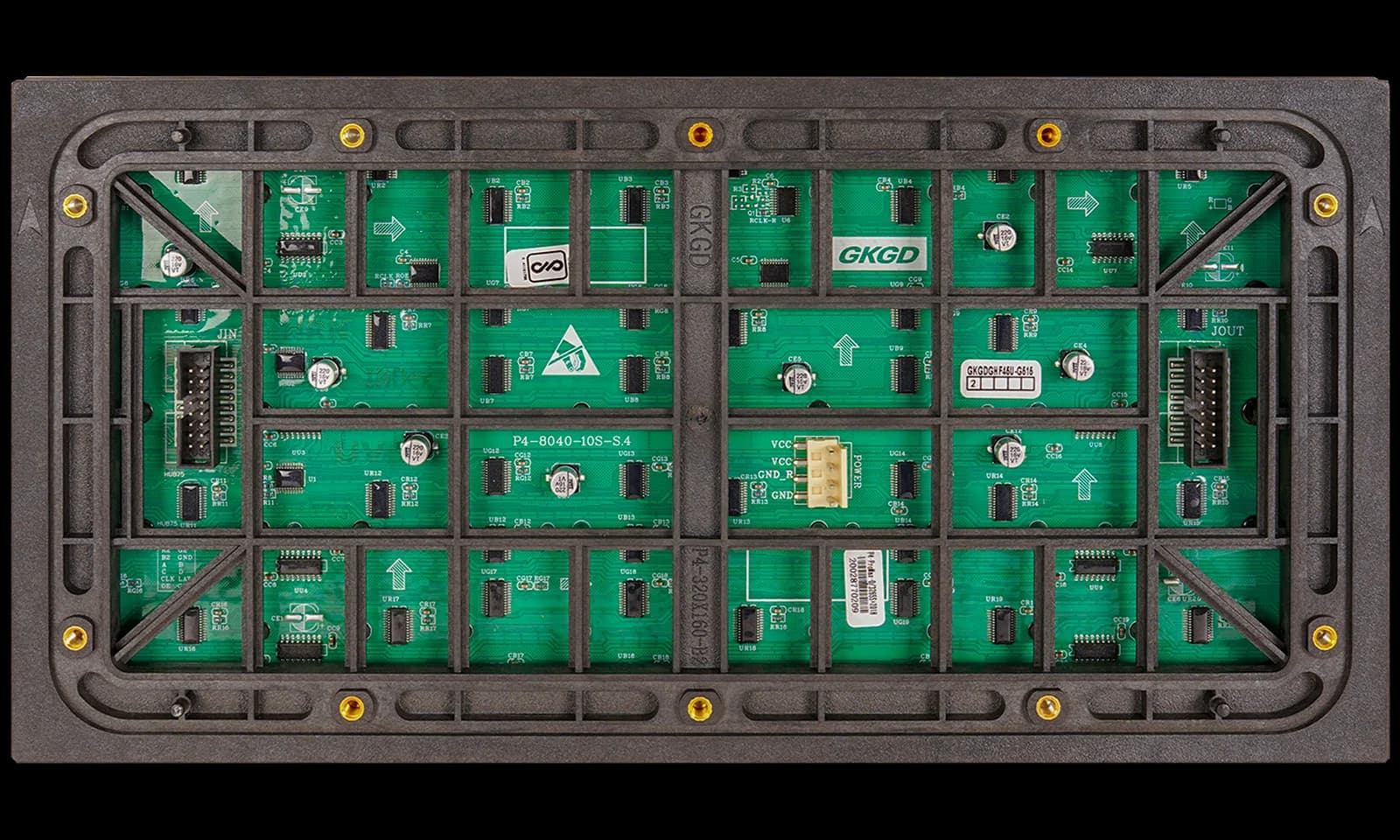

| Parameter | P4 Outdoor |
|---|---|
| Module Size (mm) | 320x160 |
| Module Resolution | 80x40 |
| Scan Mode | 10S |
| LAMP Make | Nationstar/Kinglight |
| LED Configuration | SMD 1921 |
| Brightness (nit) | >=5500 |
| Driving Method | Constant current |
| Refresh Rate | 3840-7680 Hz |
| Grey Scale | 16 bit |
| Viewing Angle (H/V) | 140/140 |
| Contrast Ratio | 5000:1 |
| Module Input Voltage(V) | 5V |
| Module Max Current | 7.6A |
| Max Power(W/㎡) | 786 |
| Average Power(W/㎡) | 262 |
| IP Level | Front IP65 / Back IP54 |
| Input Voltage(V) | 110-220 |
| Display Thickness | 106 mm |
| Life Time | >100000 hours |
| Working Temperature | -20 to +60C |
| Working Humidity | 10-95%RH |
| Cabinet Model | Aluminium |
| Cabinet Size | 960*960 |
| Empty cabimet weight | 14kg |
| Display Weight | 27kg |
| Maintance | Back service |
Engineered for High-Performance DOOH Applications
The P4 Gold Series DOOH LED Display is optimized for premium outdoor advertising environments requiring high-resolution visibility and stable continuous operation. It delivers reliable performance across commercial outdoor display installations.
- High-resolution pixel pitch for premium advertising visibility
- High brightness ensures strong daylight display performance
- Die-cast cabinet structure improves seamless visual alignment
- High refresh rate ensures smooth advertising playback quality
- Energy-efficient system supports reliable continuous operation
Use Case / Content Display
- Retail branding (example: luxury outdoor promotional displays)
- Digital billboards (example: premium advertising systems)
- Smart city displays (example: public communication media walls)
- Commercial facades (example: high-resolution branding installations)
- Outdoor campaigns (example: premium marketing display systems)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 4 mm
- Brightness: ≥5500–6000 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥4 meters
- Cabinet Type: Aluminum Die-Cast Cabinet
- Power Consumption: 260W (avg)
Final Feature Block
- Designed for premium outdoor DOOH advertising installations
- High brightness ensures exceptional outdoor viewing visibility
- Die-cast cabinet structure improves display stability performance
- Seamless visuals with high refresh playback quality
- Modular cabinet system supports scalable advertising installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
