P5 Sports LED Display
SMD2727, Outdoor IP65 Sports Cabinet, High Refresh LED
Transforming Stadiums with High-Performance Sports LED Displays
Our P5 Sports LED Display is engineered for sports arenas, stadium displays, perimeter advertising systems, and live sporting environments requiring high brightness and close-range viewing clarity. Designed for continuous sports usage, it delivers vibrant visuals with stable and seamless performance across demanding outdoor conditions.
Built with rugged IP65-rated sports cabinets and advanced LED technology, this display ensures long-term durability, energy efficiency, and dependable operation. Its high refresh rate and wide viewing angles provide smooth and flicker-free visuals ideal for live sports broadcasting and audience engagement.
| Parameter | P5 Outdoor |
|---|---|

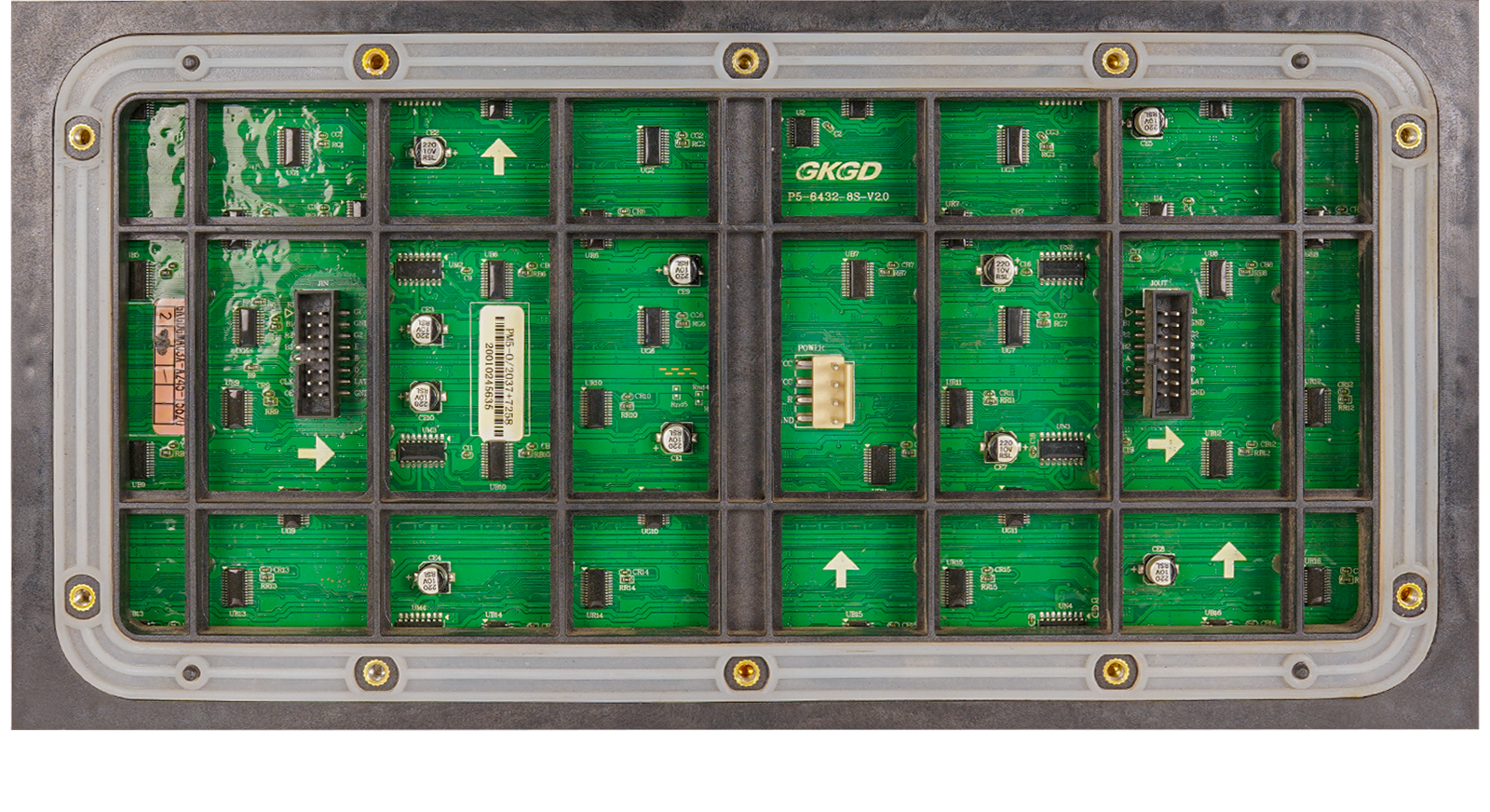

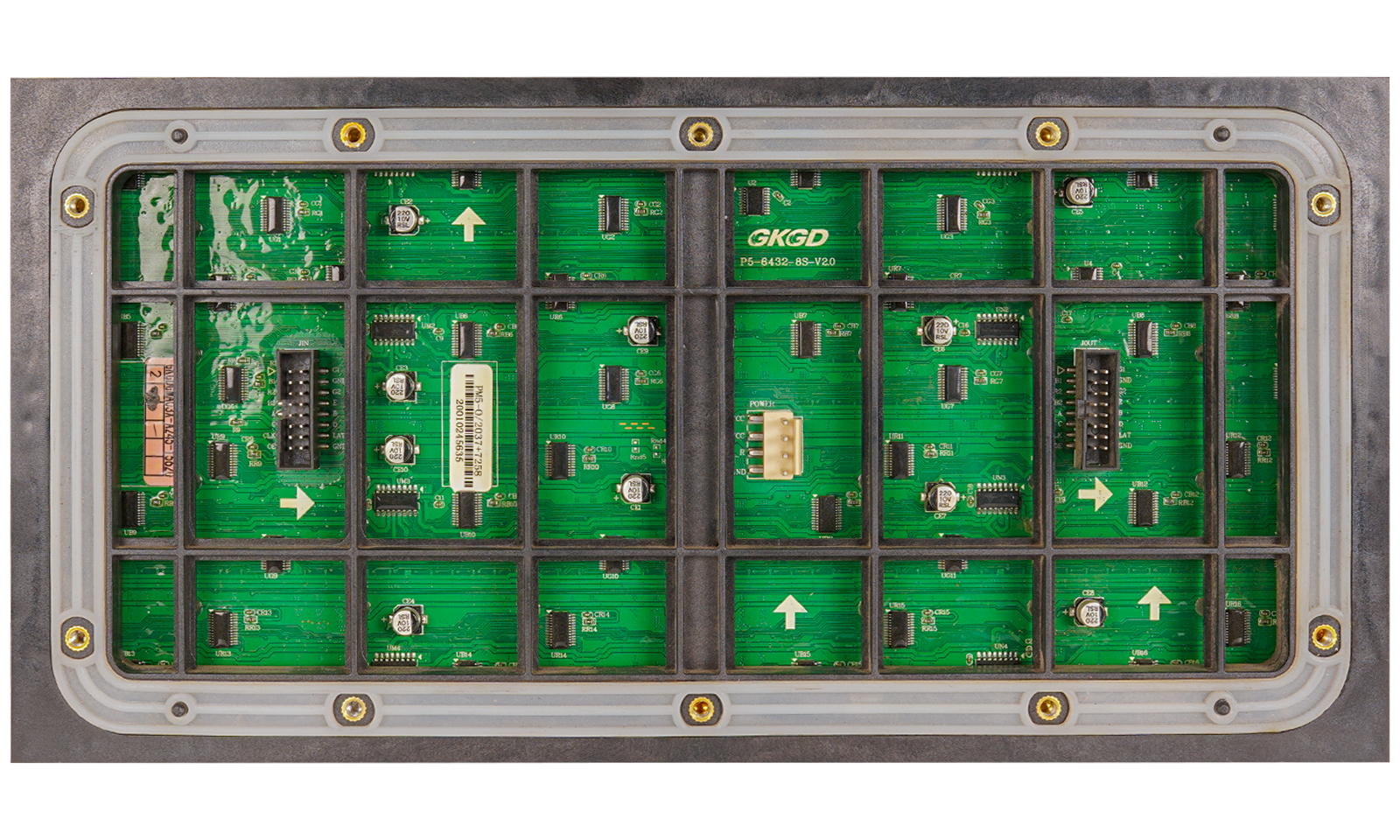

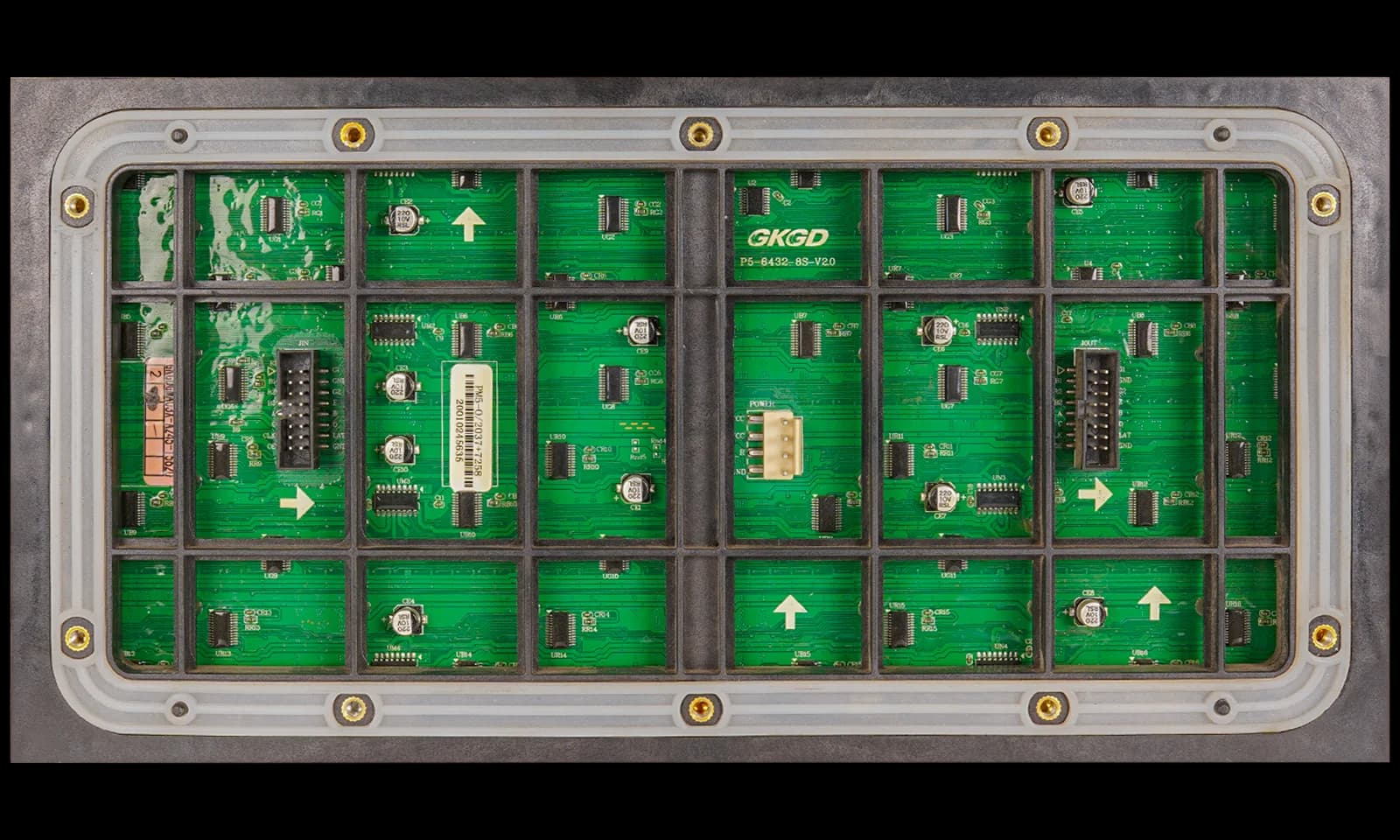

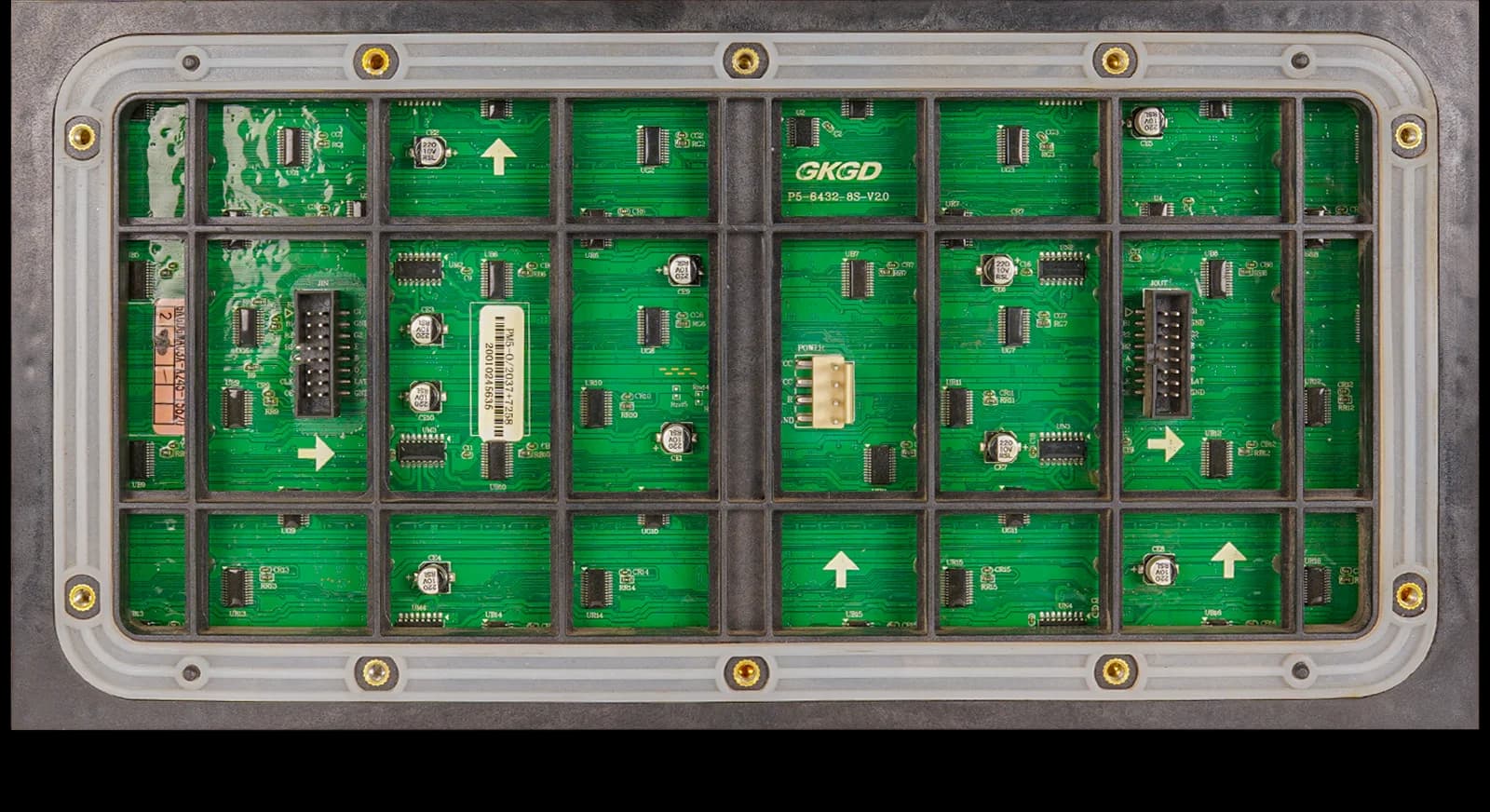

| Module Size (mm) | 320x160 |
| Module Resolution | 64x32 |
| Scan Mode | 8S |
| LAMP Make | Nation Star/light king |
| LED Configuration | SMD 2727 |
| Brightness (nit) | >=8000 |
| Driving Method | Constant current |
| Refresh Rate | >=7680 |
| Data Processing | 14- 16 bit |
| Viewing Angle (H/V) | 160/160 |
| Contrast Ratio | .8000:1 |
| Module Input Voltage(V) | 5V |
| Module Max Current | 7.6A |
| Max Power(W/㎡) | 786 |
| Average Power(W/㎡) | 262 |
| IP Level | IP66 |
| Input Voltage(V) | 110-220 |
| Display Thickness | 106 mm |
| Life Time | >100000 hours |
| Working Temperature | -20 to +60C |
| Working Humidity | 10-95%RH |

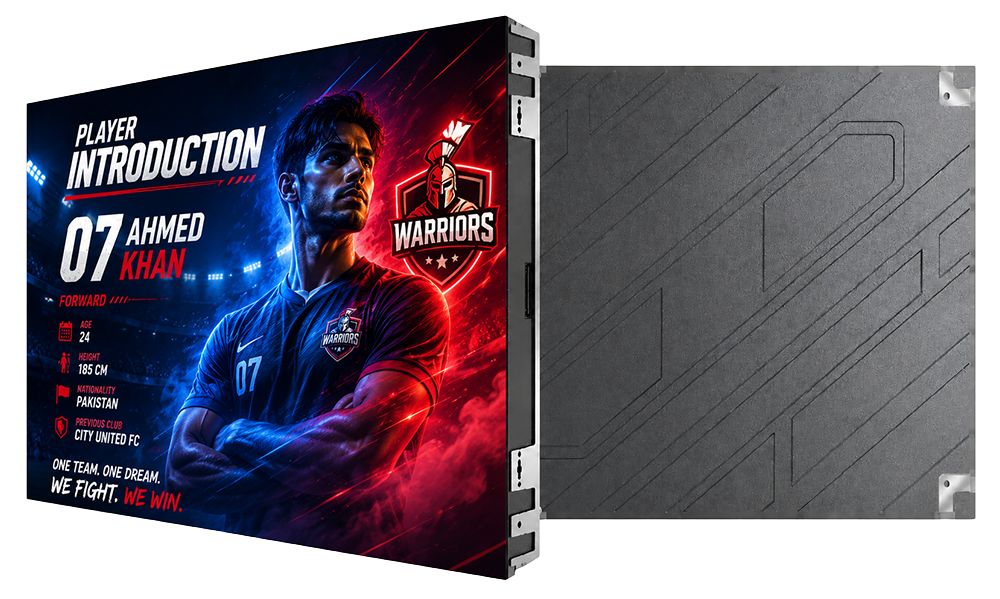

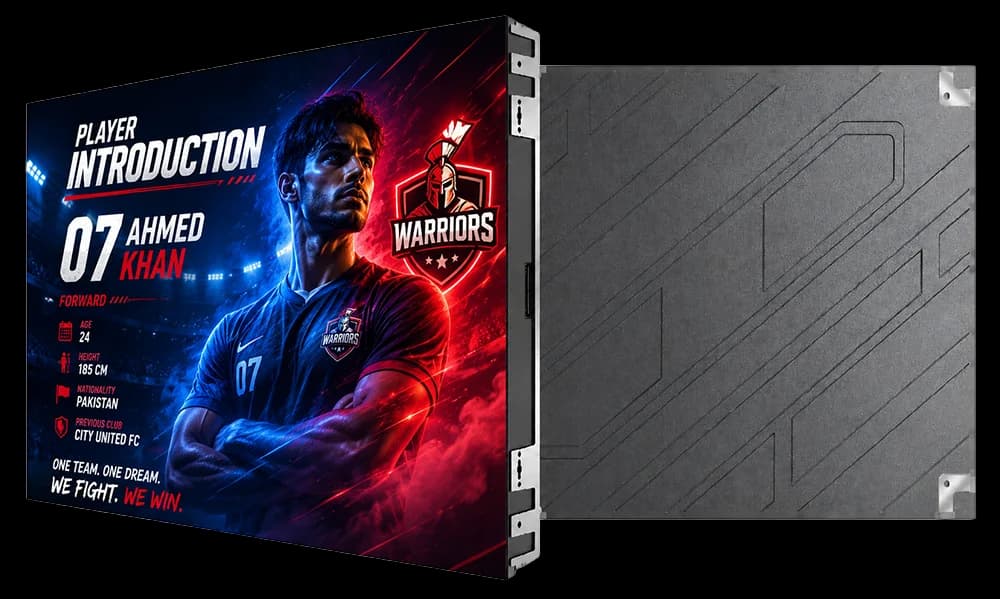

| Cabinet Model | Aluminium |
| Cabinet Size | 960*960 |
| Display Weight | 34kg |
| Maintance | Front / Back |
Engineered for High-Performance Sports Applications
The P5 Sports LED Display is optimized for outdoor sports environments requiring high-resolution visuals and reliable continuous operation. It delivers seamless visuals and stable performance across stadium installations and live sporting events.
- High-resolution pixel pitch for close-range stadium visibility
- High brightness ensures strong outdoor viewing performance
- High refresh rate for smooth sports broadcasting visuals
- Rugged IP65 cabinet structure for outdoor durability
- Reliable operation during continuous sports event usage
Use Case / Content Display
- Stadium scoreboards (example: live score and timer displays)
- Sports advertising (example: perimeter sponsor branding systems)
- Arena visuals (example: fan engagement display screens)
- Live broadcasts (example: replay and match visuals)
- Sporting events (example: outdoor sports information displays)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 5 mm
- Brightness: ≥6000 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥5 meters
- Module Size: 320 × 160 mm
- Power Consumption: 280W (avg)
Final Feature Block
- Optimized for high-resolution sports stadium installations
- High brightness for superior outdoor viewing visibility
- Rugged weatherproof structure for demanding sports environments
- Seamless visuals with stable refresh rate performance
- Flexible modular design for scalable stadium installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
