P2.5 High-Resolution Outdoor LED Display
Outdoor LED Display Solutions
High-Resolution Outdoor LED Display
Advertising, Premium Retail Branding, Smart City Displays
P2.5
SMD1415, Outdoor IP65 Cabinet, High Refresh LED
Transforming Outdoor Spaces with High-Resolution LED Displays
Our P2.5 outdoor LED display is engineered for outdoor environments requiring ultra-sharp visuals, close viewing clarity, and reliable all-weather performance. Ideal for DOOH advertising, premium retail branding, and smart city installations, it delivers vibrant visuals with seamless and stable operation.
Built with advanced outdoor LED technology and a rugged IP65-rated cabinet structure, this display ensures long-term durability, energy efficiency, and dependable performance in demanding outdoor conditions. Its ultra-high refresh rate and wide viewing angles provide smooth and flicker-free visuals even under direct sunlight.
| Parameters | Specifications |
|---|---|
| Placement(Outdoor) | Outdoor (MS/Die Cast - IP65) |
| Pixel Pitch(mm) | 2.5mm |
| LED Configuration | SMD 3 in 1 |
| Light type | SMD1515 |
| rowspan | 1R1G1B |
| Module or Lamp make | LAMP / Hikvision / Qiangli / Changli / GKGD / Leyard |
| Driver IC | ICN / FM / SM /MBI |
| Module Size(mm) | 320*160 |
| Module Resolution(dot) | 128x64 |
| Module Pixel | 819 |
| Best View distance | ≧3m |
| Brightness | ≥4500cd/m2 |
| View Angle | H≥160° & V≥140° |
| Gray Level | 14-16 bit |
| Refresh Rate | >3840 - ≥7680Hz |
| Driving Mode | 1/32 Scan |
| Refresh frame frequency | 50~60Hz |
| Power Comsumption(max/sqm) | 744W/m2 |
| Power Comsumption(Avg) | 372W/m2 |
| Runing Temperature | –20℃～70℃/RH |
| Storage Temperature | –35℃～+80℃ |
| Humidity | 10% ～95% |
| Lifespan | 100,000H |
| Module size | 320mm×160mm×18mm |
| Weight | 430±5g |
| Contrast ratio | 8000:1, |
| Working voltage | 5V |
| Maximum current of module | 7.5A |
| Average power of module | 19W |
| Maximum power of Module | 38W |
Engineered for High-Performance Outdoor Applications
The P2.5 LED display is optimized for outdoor environments requiring ultra-clear visuals and close viewing performance. It delivers powerful brightness, seamless visuals, and reliable operation across premium outdoor installations.
- Ultra-fine pixel pitch for high-resolution outdoor visibility
- High brightness ensures strong daylight viewing performance
- Smooth visuals with ultra-high refresh rate technology
- Rugged IP65 cabinet structure for outdoor durability
- Reliable performance with energy-efficient operation systems
Use Case / Content Display
- Advertising (example: premium outdoor digital billboards)
- Retail branding (example: luxury storefront LED displays)

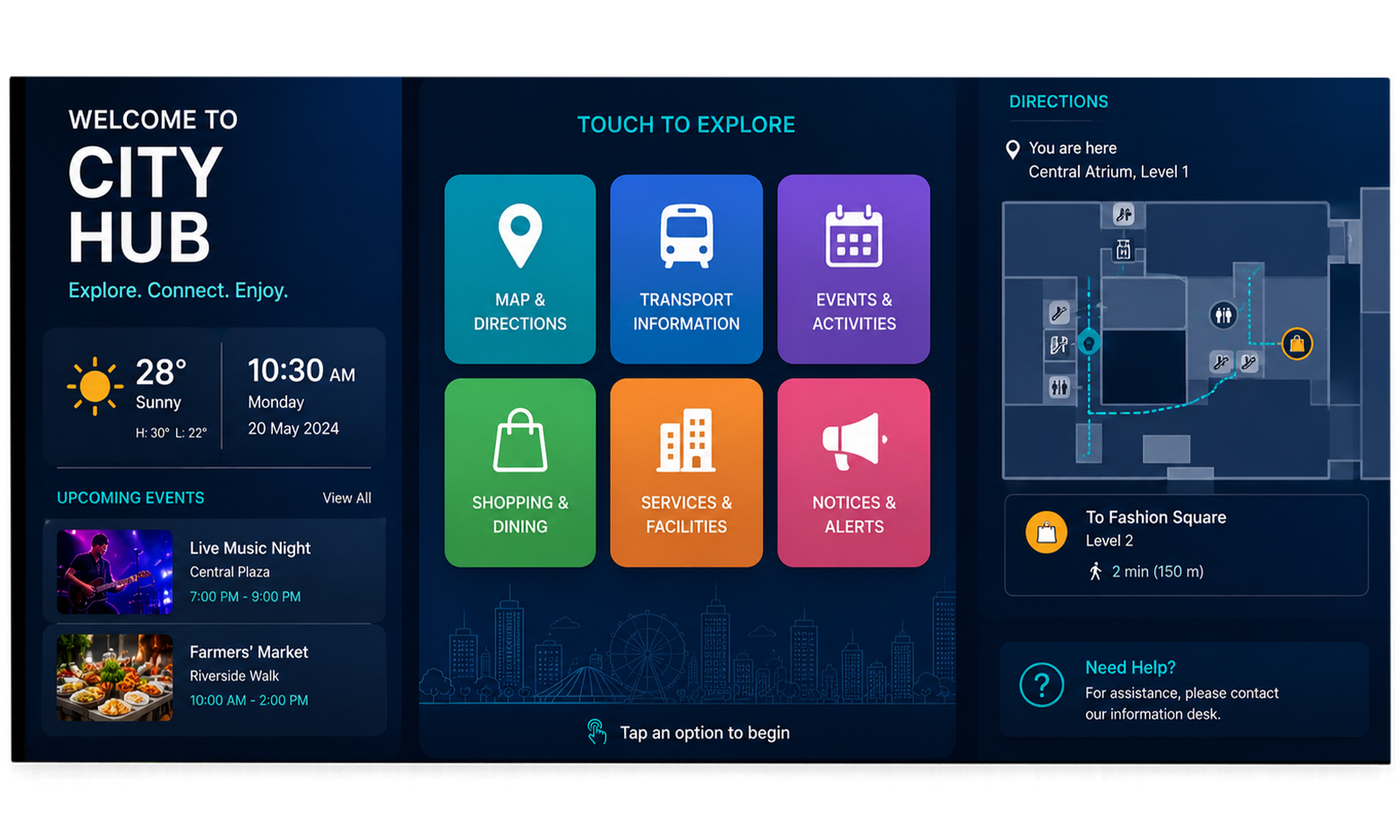

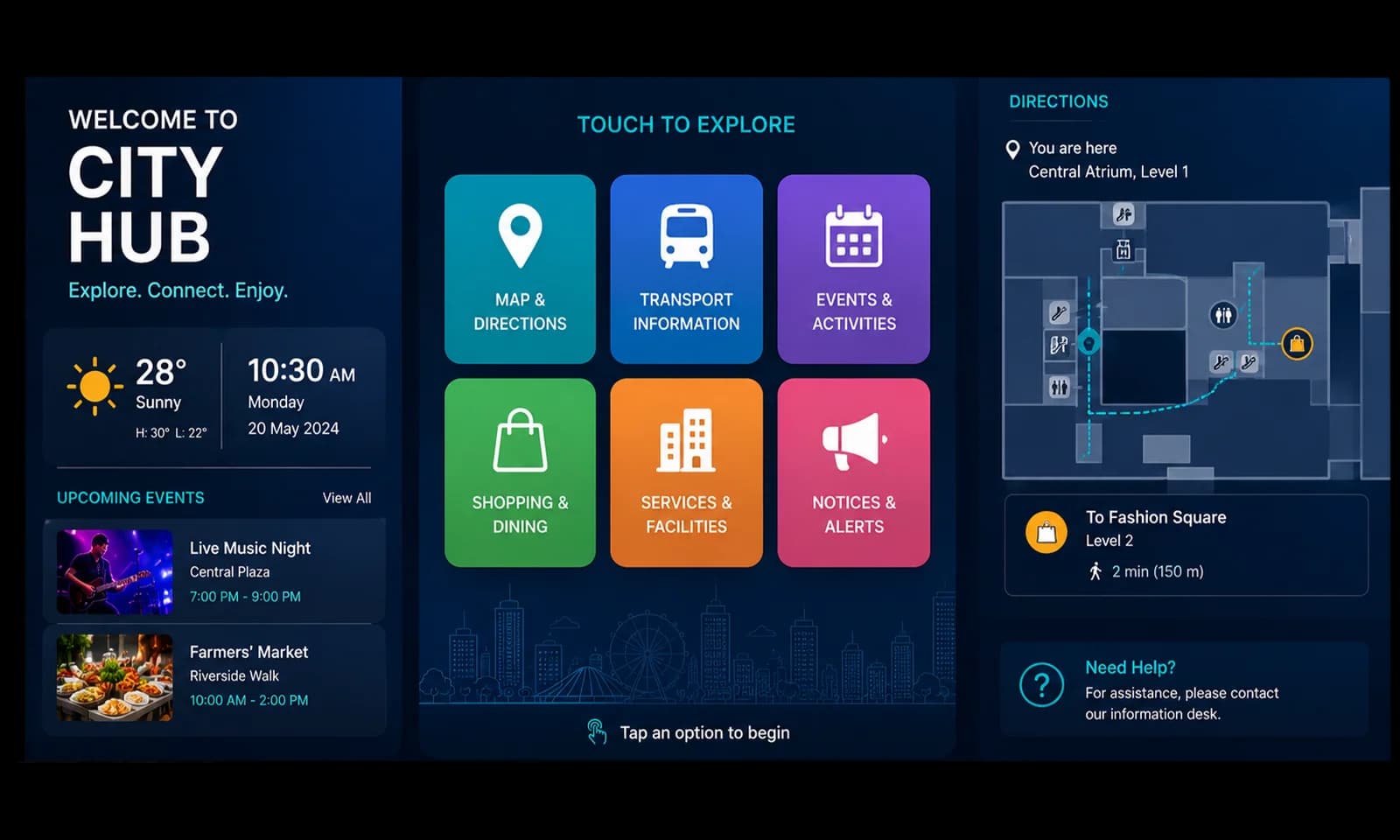

- Smart city displays (example: public information screens)
- Commercial branding (example: high-resolution outdoor signage)
- Event promotions (example: premium outdoor campaign displays)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 2.5 mm
- Brightness: ≥5500–6500 cd/m²
- Refresh Rate: ≥3840Hz – 7680Hz
- Viewing Distance: ≥2.5 meters
- Module Size: 320 × 160 mm
- Power Consumption: 260W (avg)
Final Feature Block
- Optimized for premium high-resolution outdoor display applications
- High brightness for exceptional daylight visibility performance
- Durable weatherproof structure for reliable outdoor operation
- Seamless visuals with stable refresh rate performance
- Flexible modular design for scalable outdoor installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
