P0.9 COB LED Display
Advanced Indoor LED Display Solutions
COB LED Display Series
Control Rooms, Broadcast Studios, Command Centers, Premium Indoor Installations

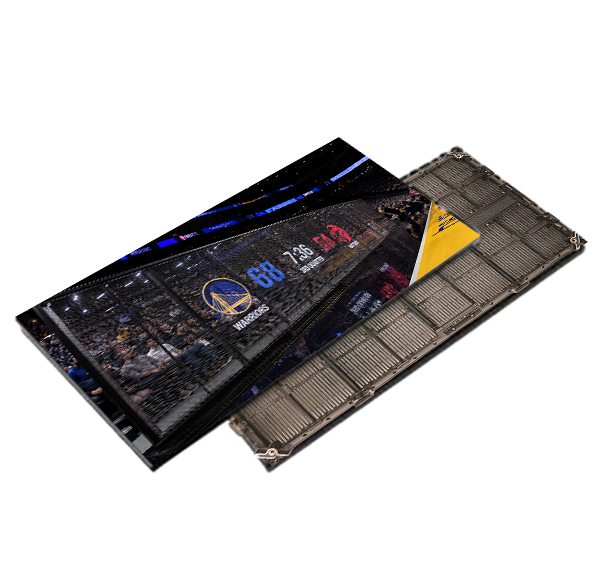

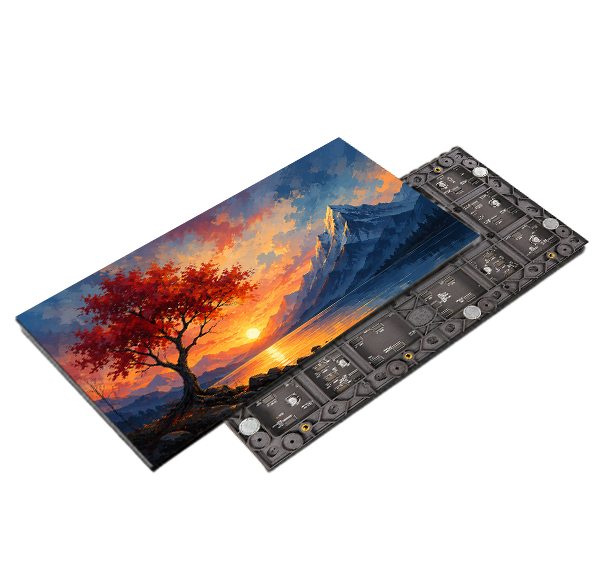

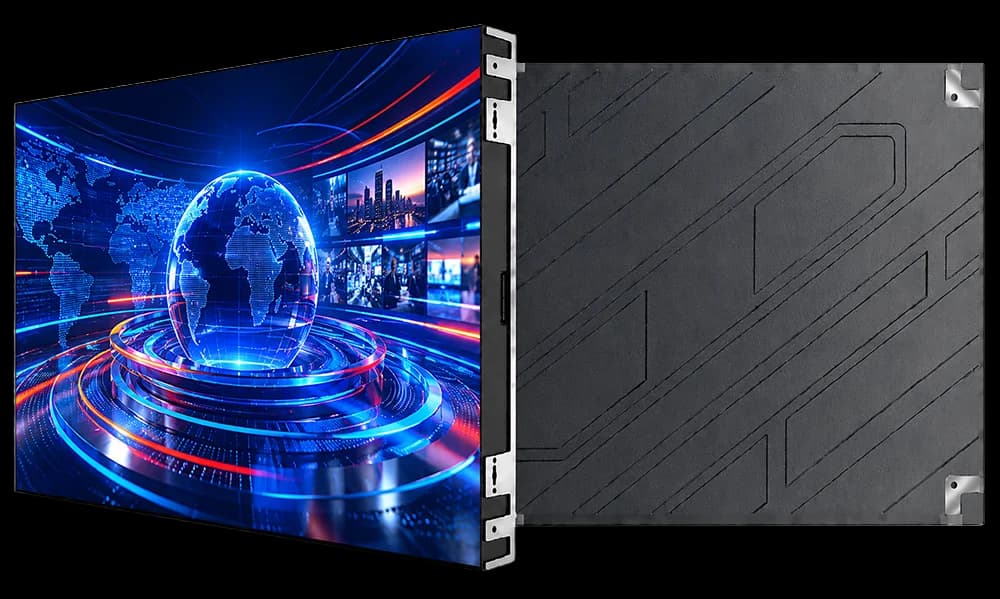

P0.9 COB LED Display
COB (Chip-on-Board), Die-Cast Aluminum Cabinet, Ultra Fine Pitch LED
Transforming Indoor Spaces with Ultra-Fine COB LED Technology
Our P0.9 COB LED Display is engineered for premium indoor environments requiring ultra-high resolution, seamless visuals, and advanced display protection. Designed for control rooms, broadcast studios, command centers, and mission-critical applications, it delivers exceptional image clarity with stable and reliable performance.
Built with advanced COB (Chip-on-Board) technology and precision die-cast aluminum structures, this display ensures enhanced durability, energy efficiency, and superior visual uniformity. Its ultra-high refresh rate and fine pixel pitch provide smooth and flicker-free visuals ideal for close-viewing environments.
| Parameter | P0.9 COB |
|---|---|
| Pixel Pitch | 0.9375mm |
| Pixel Density (dots/m²) | 1,137,777 |
| LED Type | COB |

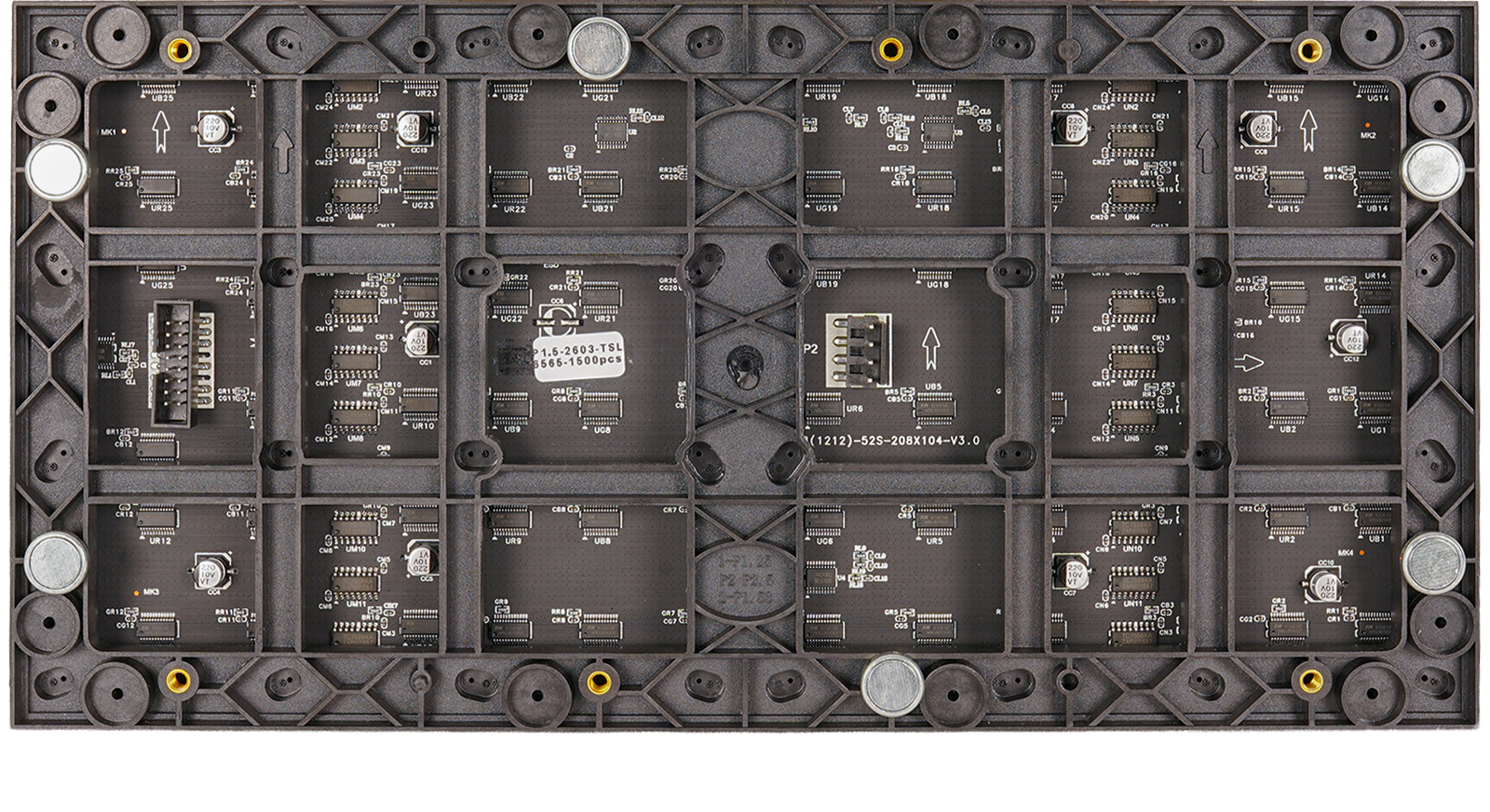

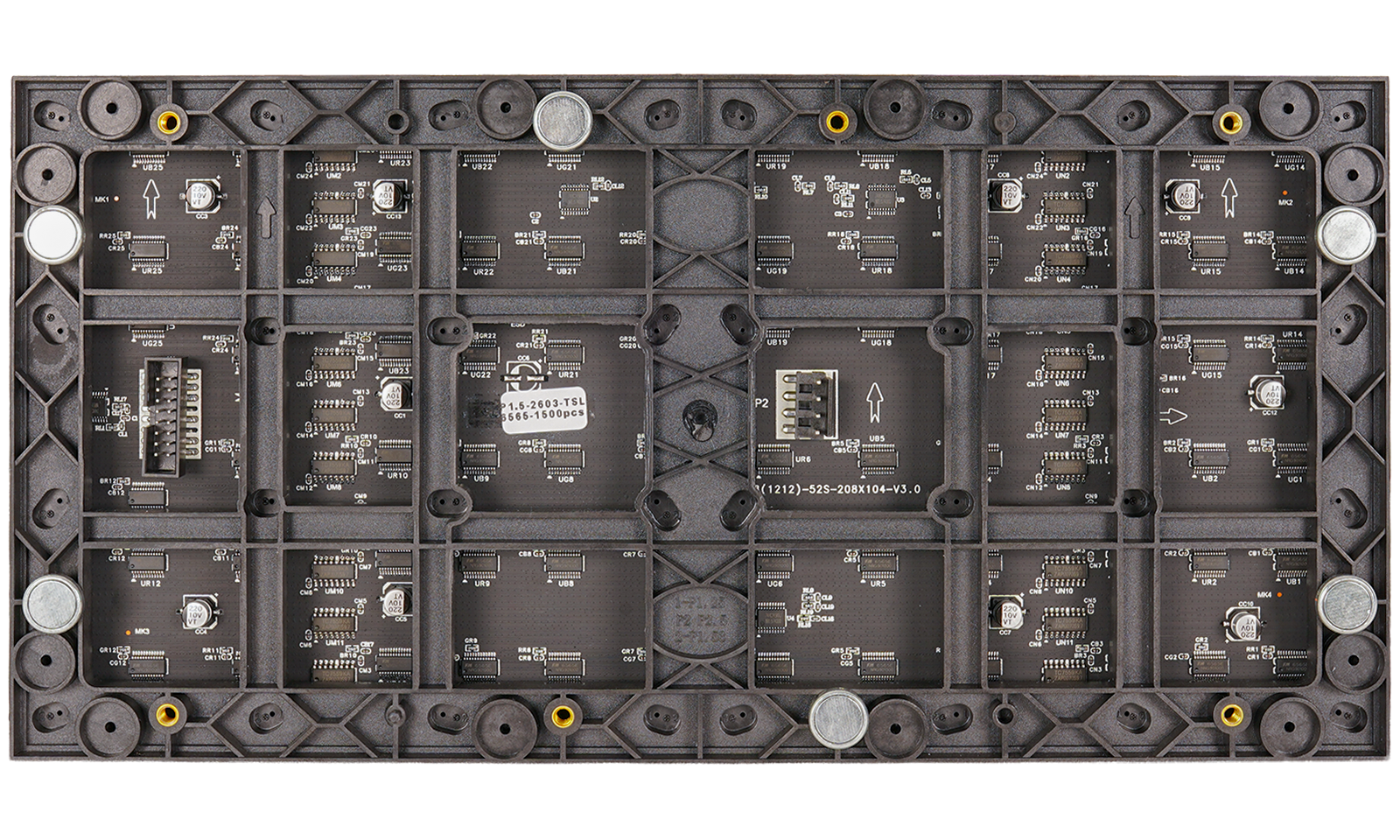

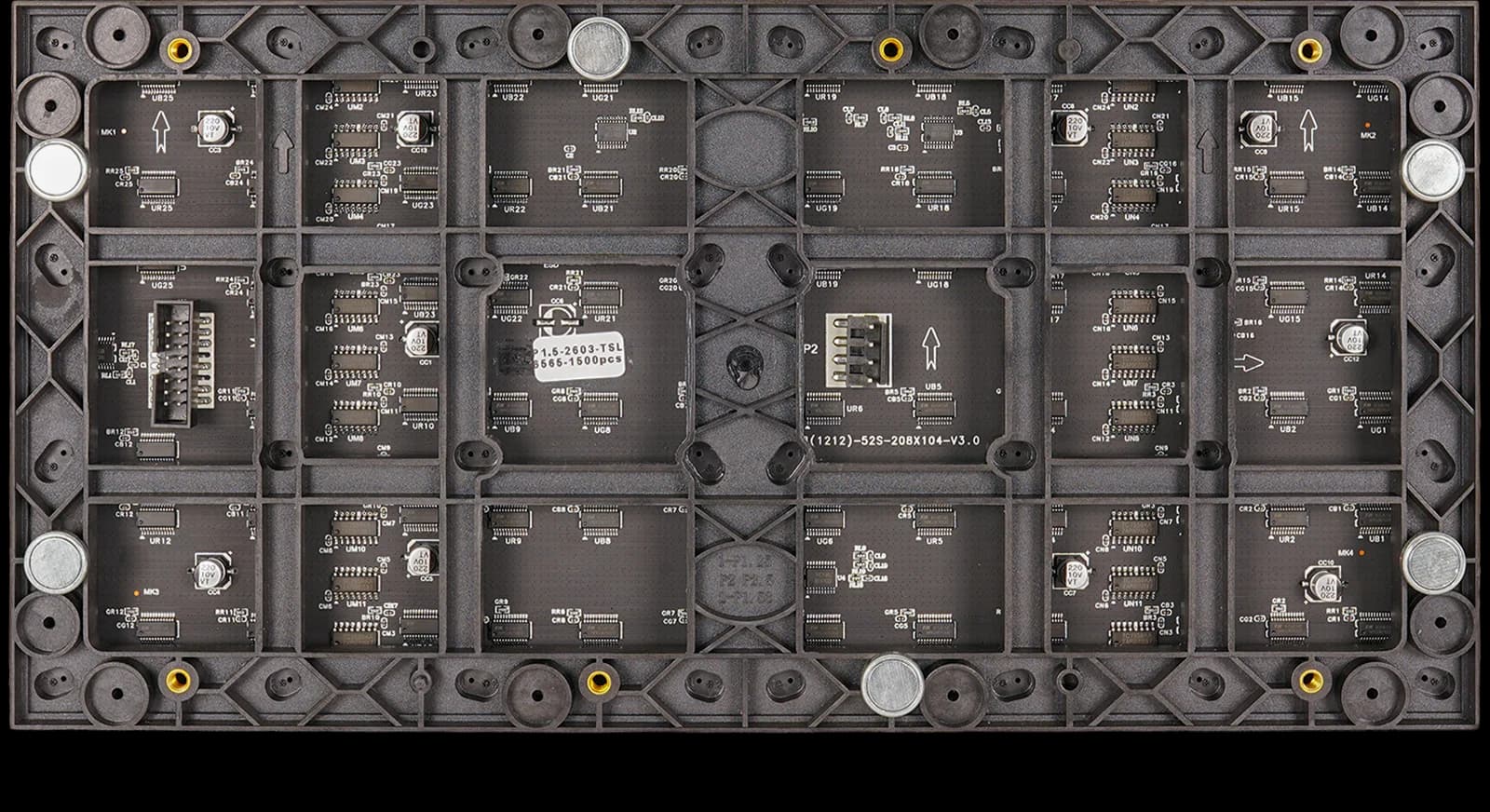

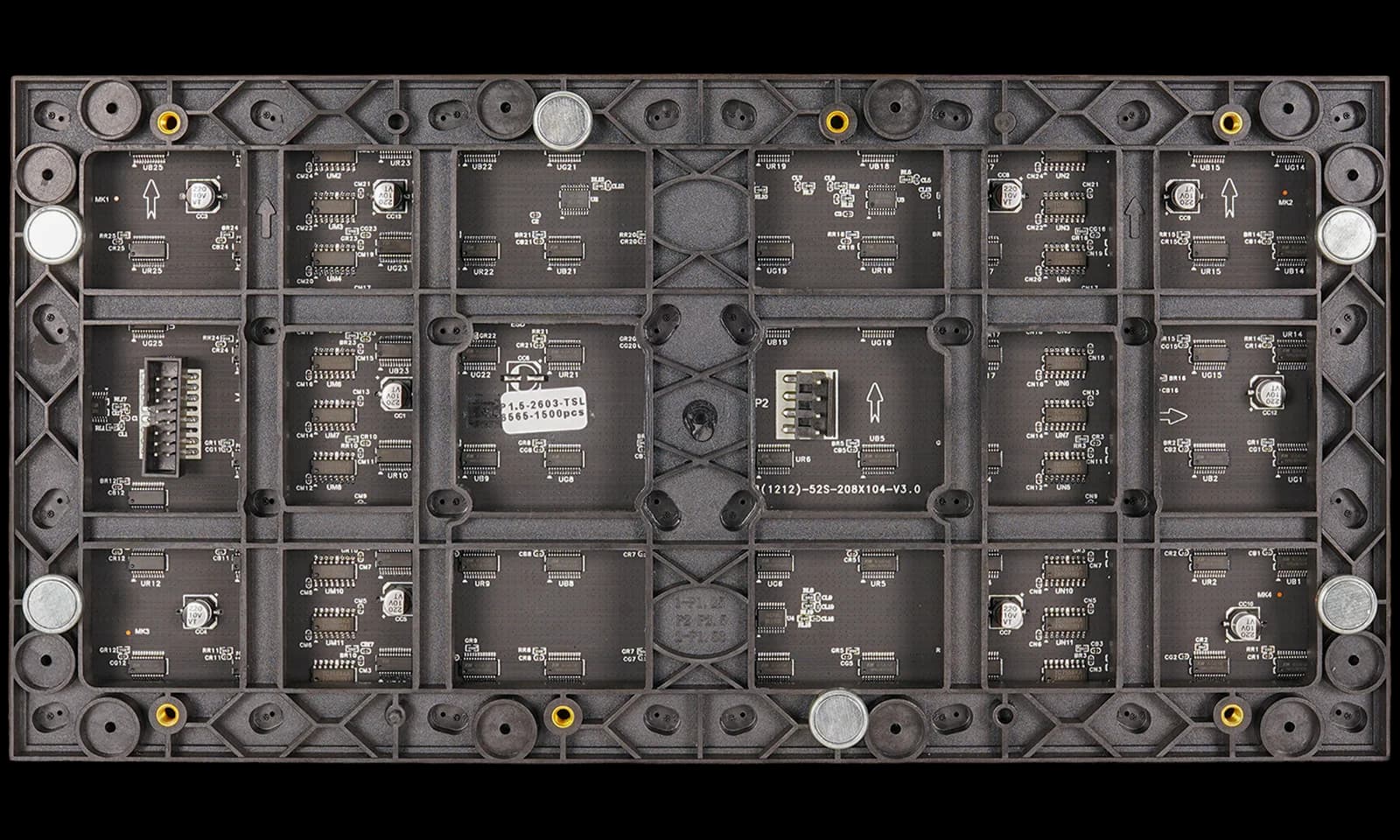

| Module Size | 300×168.75 mm |
| Module Resolution | 320×180 |

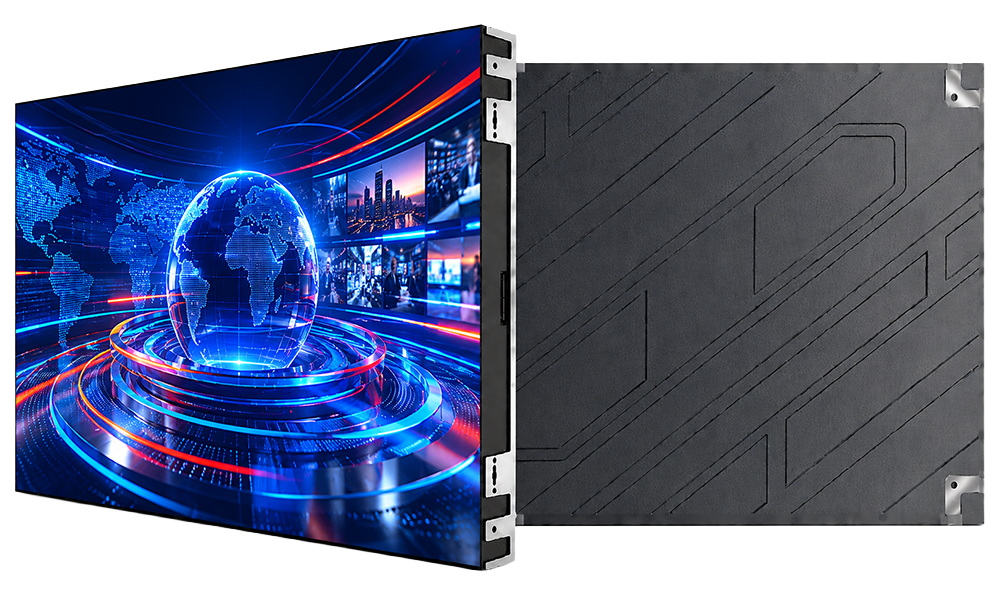

| Cabinet Size | 600×337.5 mm |
| Cabinet Resolution | 640×360 |
| Brightness | 500–700 nits |
| Contrast Ratio | 15000:1 |
| Viewing Angle | 160°/160° |
| Refresh Rate | 3840Hz -7680Hz |
| Gray Scale | 16 bit |
| Scan Mode | 1/60 |
| Cabinet Weight | 4.5 kg |
| Max Power | 400W/m² |
| Avg Power | 130W/m² |
| Color Temperature | 3000K–10000K |
| Protection | IP54 Front |
| Maintenance | Front |
| Lifetime | 100,000 hrs |
Engineered for High-Performance Indoor Applications
The P0.9 COB LED Display is optimized for ultra-fine indoor environments requiring precision visuals and long-term stable operation. It delivers seamless display performance across mission-critical indoor installations.
- Ultra-fine pixel pitch for precision close-viewing clarity
- COB protection technology improves display durability performance
- High refresh rate ensures smooth visual playback quality
- Wide viewing angles deliver seamless visual consistency
- Energy-efficient system supports stable long-term operation
Use Case / Content Display
- Control rooms (example: surveillance monitoring displays)
- Broadcast studios (example: live production video walls)

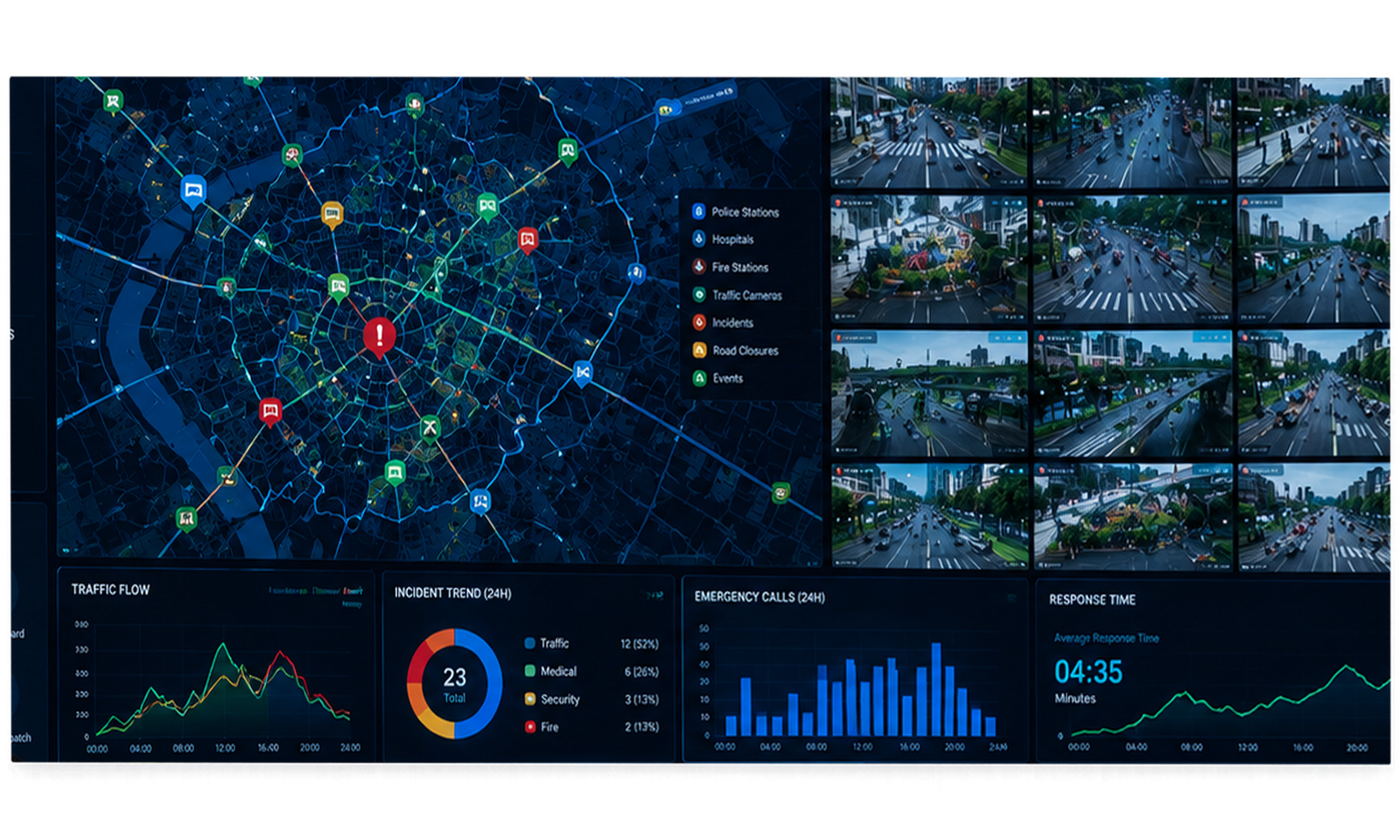

- Command centers (example: real-time operational dashboards)
- Corporate environments (example: executive presentation displays)
- Premium installations (example: luxury indoor digital walls)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 0.9 mm
- Brightness: ≥600 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥1 meter
- Cabinet Size: 600 × 337.5 mm
- Power Consumption: 150W (avg)
Final Feature Block
- Ultra-fine COB technology for premium indoor visual clarity
- High refresh performance ensures seamless visual playback
- Durable protected surface improves display reliability
- Energy-efficient system supports continuous operation environments
- Modular cabinet structure enables scalable display installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
