P0.9 GOB LED Display
Advanced Indoor LED Display Solutions
GOB LED Display Series
Control Rooms, Broadcast Studios, Corporate Spaces, Premium Indoor Installations

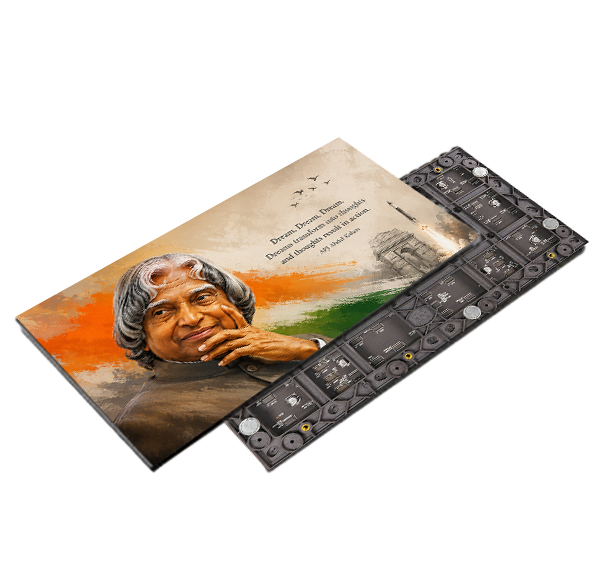

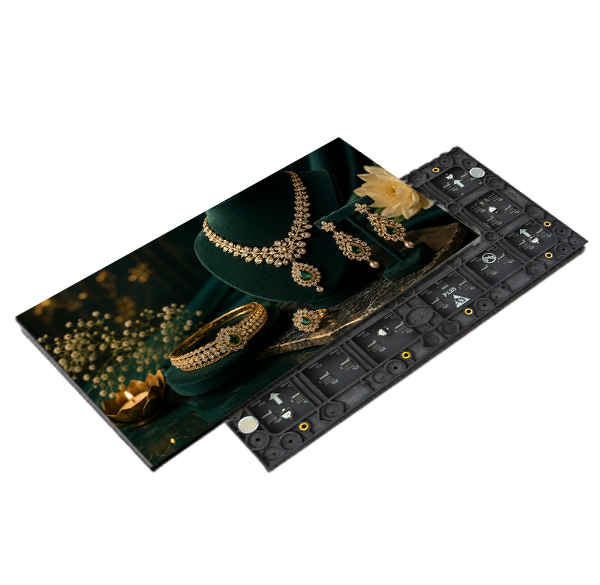

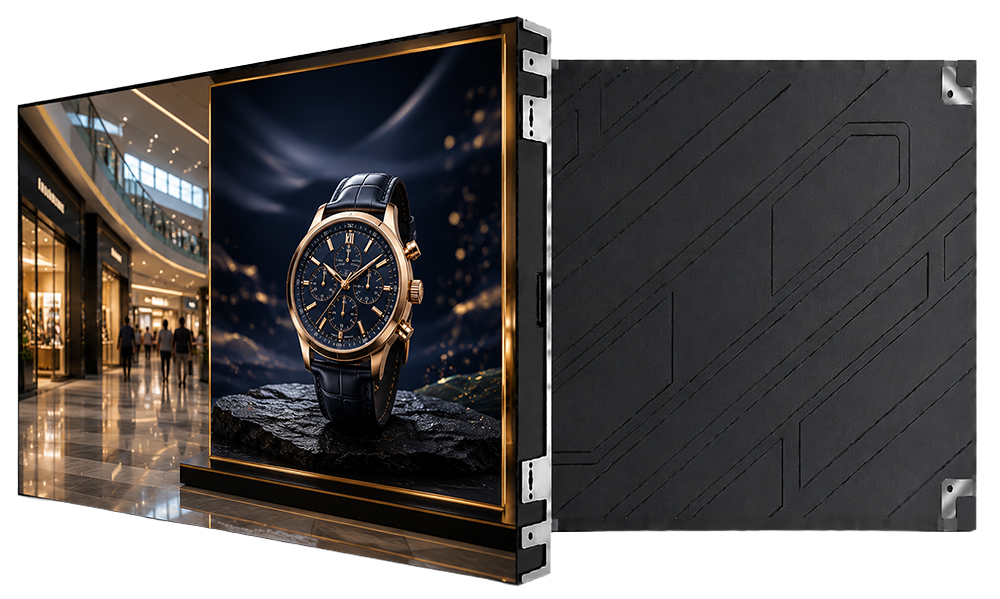

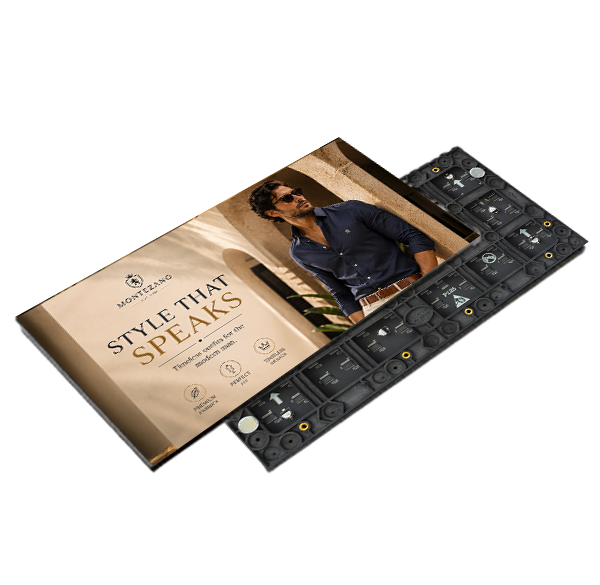

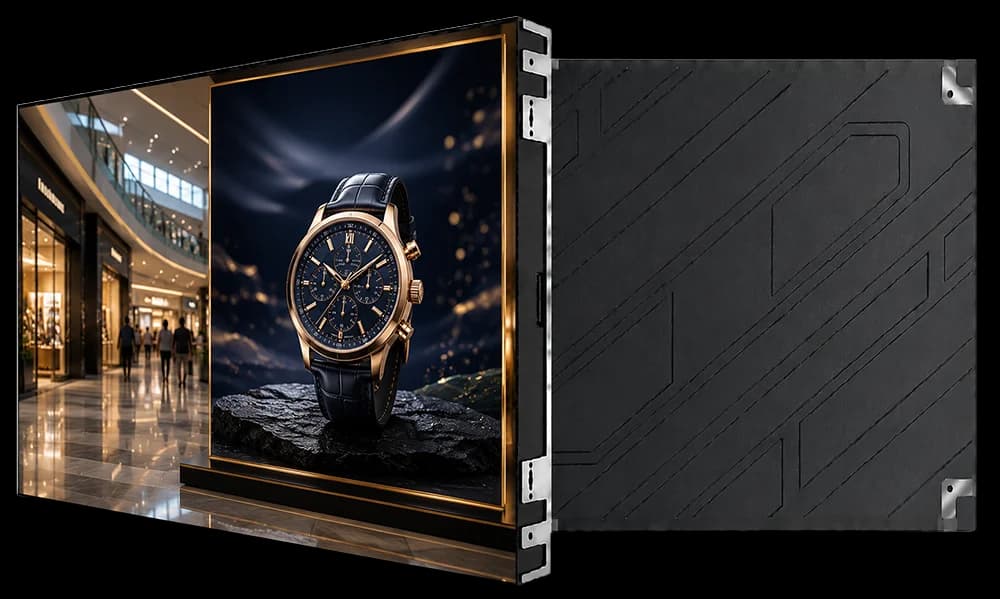

P0.9 GOB LED Display
GOB (Glue-on-Board), Die-Cast Aluminum Cabinet, Ultra Fine Pitch LED
Transforming Indoor Spaces with Advanced GOB LED Technology
Our P0.9 GOB LED Display is engineered for premium indoor environments requiring ultra-high resolution visuals, enhanced protection, and reliable seamless performance. Designed for control rooms, broadcast studios, corporate environments, and mission-critical installations, it delivers exceptional image clarity with stable operation.
Built with advanced GOB (Glue-on-Board) technology and precision die-cast aluminum structures, this display provides enhanced resistance against impact, dust, and moisture while maintaining superior visual consistency. Its ultra-high refresh rate and ultra-fine pixel pitch ensure smooth and flicker-free visuals ideal for close-viewing environments.
| Parameter | P0.9 GOB |
|---|---|
| Pixel Pitch | 0.9375mm |
| Pixel Density (dots/m²) | 1,137,777 |
| LED Type | SMD + GOB |

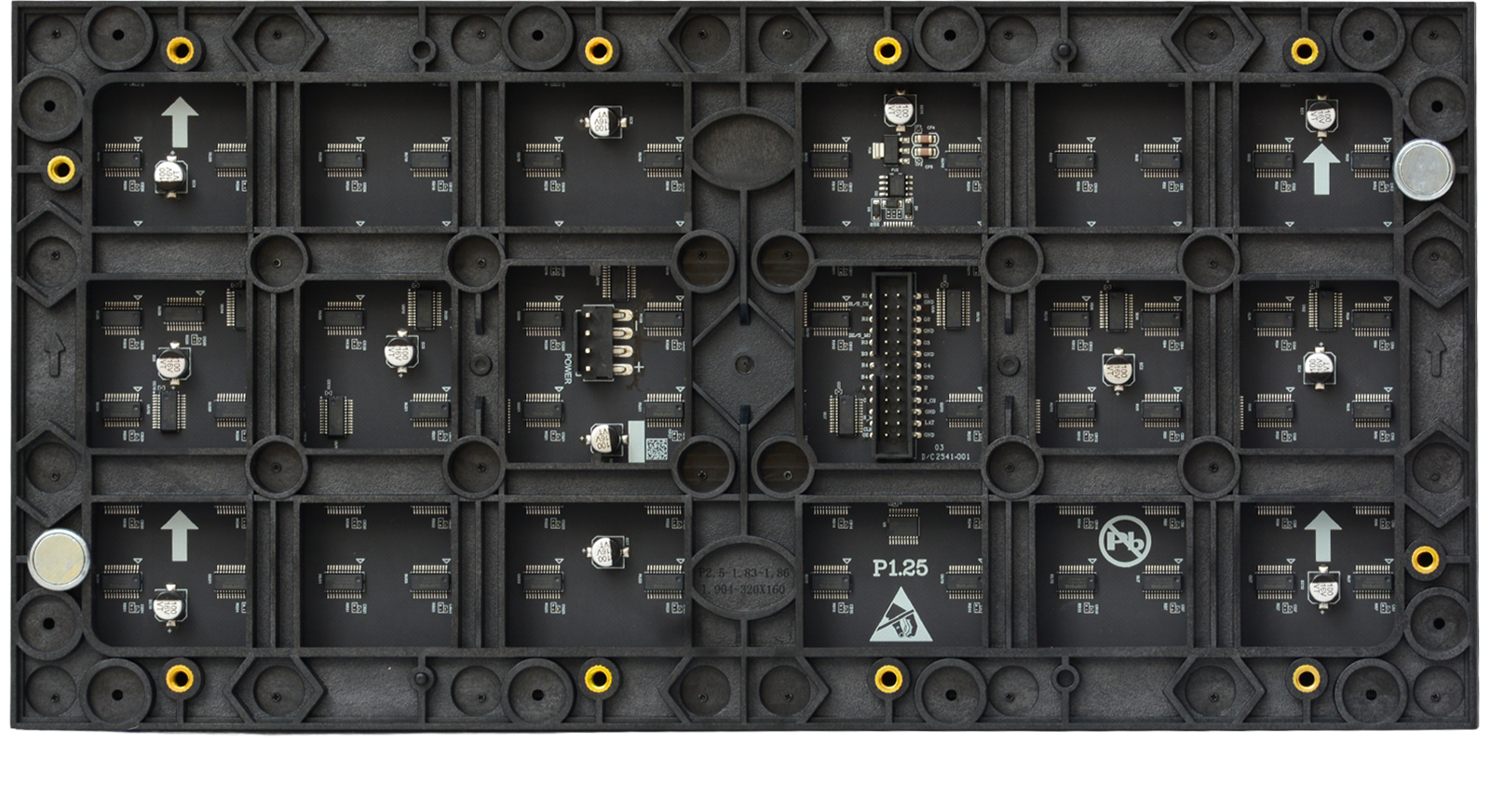

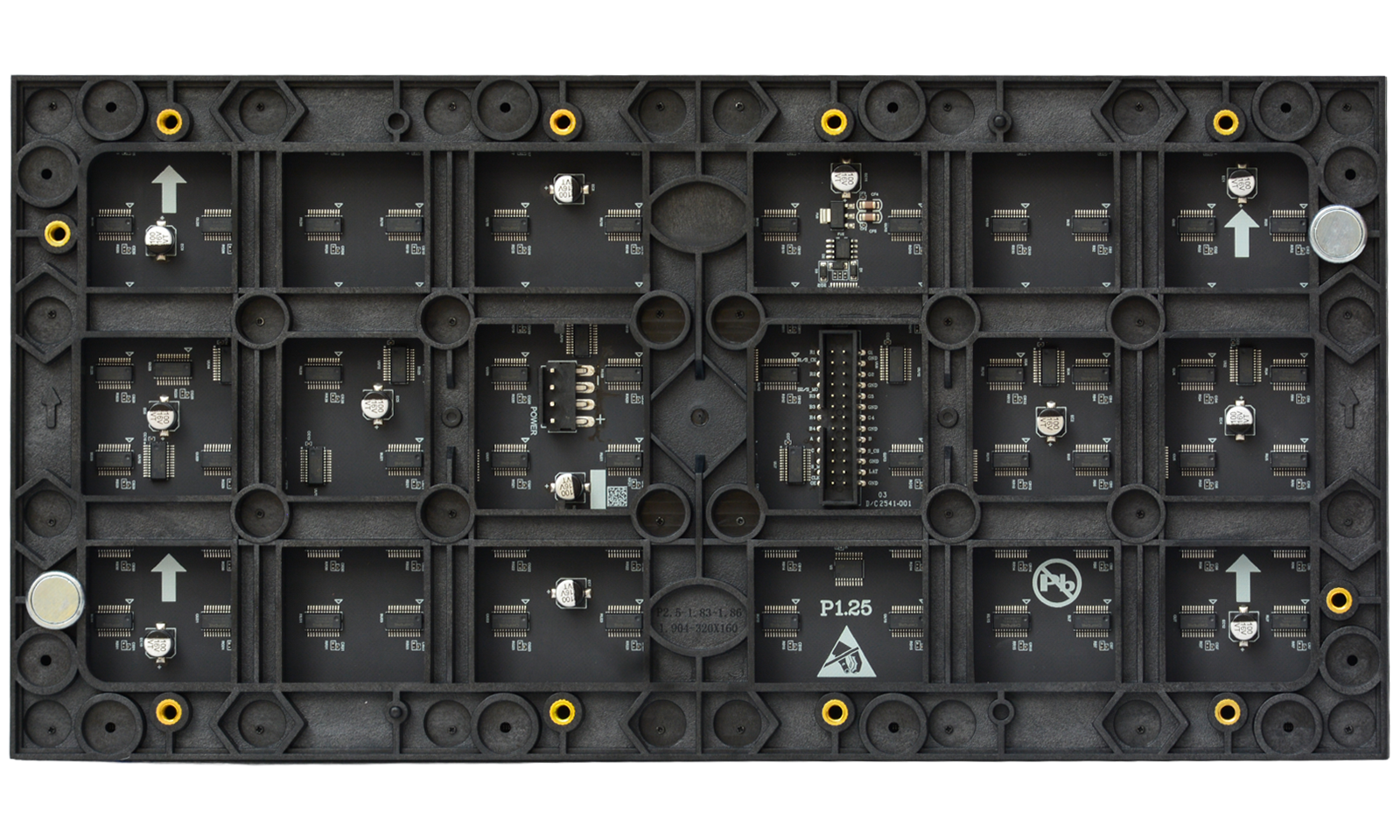

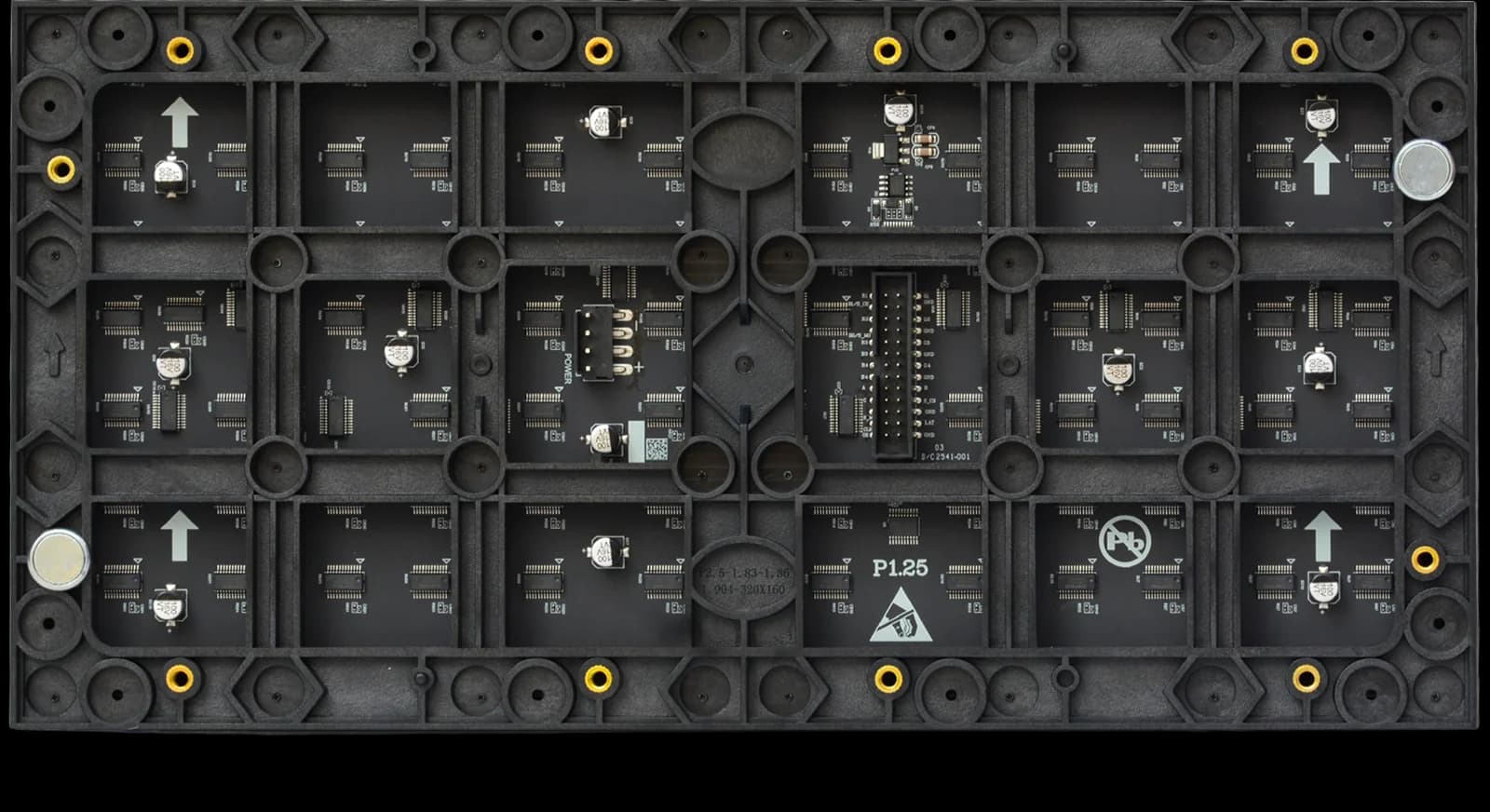

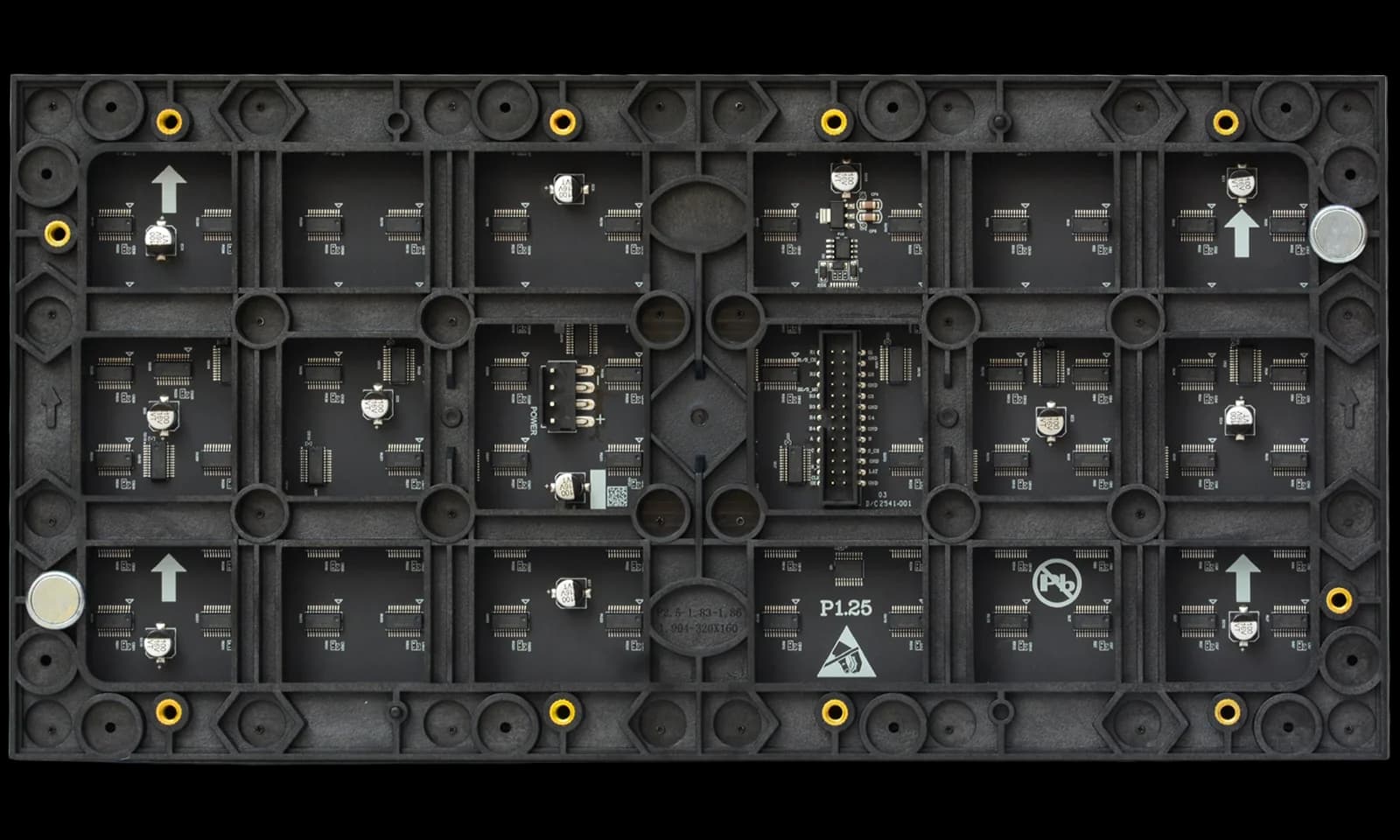

| Module Size | 320×160 mm |
| Module Resolution | 344×172 |
| Cabinet Size | 640×480 mm |
| Cabinet Resolution | 688×516 |
| Brightness | 600–800 nits |
| Contrast Ratio | 10000:1 |
| Viewing Angle | 160°/160° |
| Refresh Rate | 3840Hz |
| Gray Scale | 16 bit |
| Scan Mode | 1/48 |
| Cabinet Weight | 6.5 kg |
| Max Power | 420W/m² |
| Avg Power | 140W/m² |
| Color Temperature | 3000–10000K |
| Protection | IP65 Front |
| Maintenance | Front |
| Lifetime | 100,000 hrs |
Engineered for High-Performance Indoor Applications
The P0.9 GOB LED Display is optimized for ultra-fine indoor environments requiring durable protection and seamless visual performance. It delivers reliable operation across premium indoor installations and mission-critical display applications.
- Ultra-fine pixel pitch for precision visual clarity
- GOB protection layer improves display durability performance
- High refresh rate ensures smooth visual playback quality
- Wide viewing angles deliver seamless visual consistency
- Energy-efficient system supports stable long-term operation
Use Case / Content Display
- Control rooms (example: surveillance monitoring displays)
- Broadcast studios (example: live production video walls)
- Corporate spaces (example: executive presentation displays)
- Command centers (example: operational dashboard systems)
- Premium installations (example: luxury indoor LED walls)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 0.9 mm
- Brightness: ≥600 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥1 meter
- Cabinet Size: 600 × 337.5 mm
- Power Consumption: 150W (avg)
Final Feature Block
- Ultra-fine GOB technology for protected indoor visual clarity
- High refresh performance ensures seamless visual playback
- Durable protective surface improves long-term reliability
- Energy-efficient system supports continuous operation environments
- Modular cabinet structure enables scalable display installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
