P1.5 GOB LED Display
Advanced Indoor LED Display Solutions
GOB LED Display Series
Corporate Boardrooms, Control Rooms, Broadcast Studios, Premium Indoor Installations

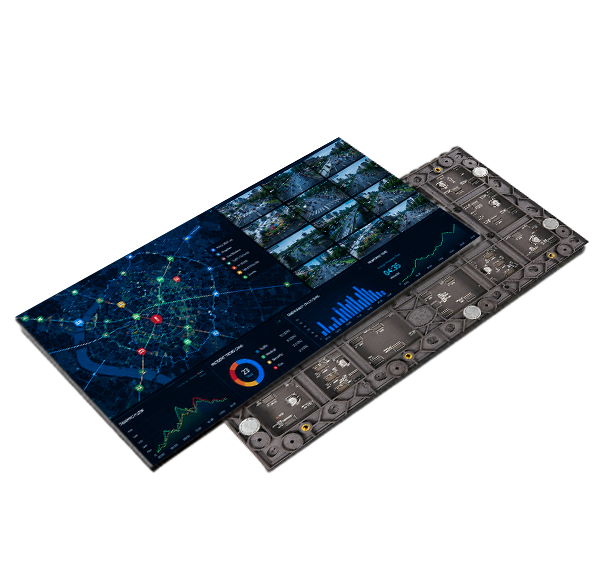

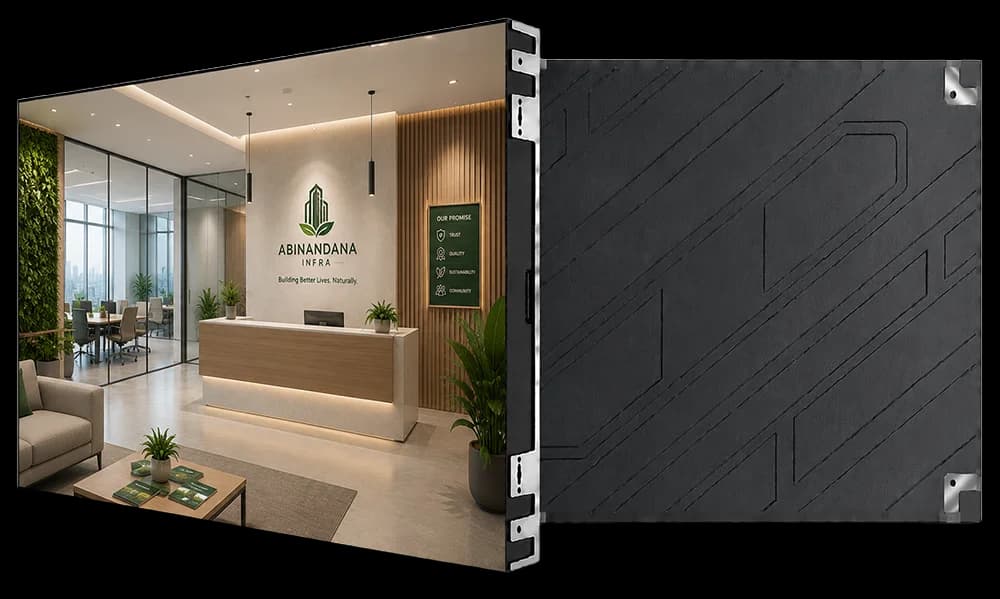

P1.5 GOB LED Display
GOB (Glue-on-Board), Die-Cast Aluminum Cabinet, Ultra Fine Pitch LED
Transforming Indoor Spaces with Advanced GOB LED Technology
Our P1.5 GOB LED Display is engineered for premium indoor environments requiring seamless visuals, enhanced protection, and reliable high-resolution performance. Designed for corporate boardrooms, control rooms, broadcast studios, and premium indoor installations, it delivers exceptional image clarity with stable and efficient operation.
Built with advanced GOB (Glue-on-Board) technology and precision die-cast aluminum structures, this display provides enhanced resistance against impact, dust, and moisture while maintaining superior visual consistency. Its high refresh rate and fine pixel pitch ensure smooth and flicker-free visuals ideal for close-viewing applications.
| Parameter | P1.5 GOB |
|---|---|
| Pixel Pitch | 1.5mm |
| Pixel Density (dots/m²) | 444,444 |
| LED Type | SMD + GOB |

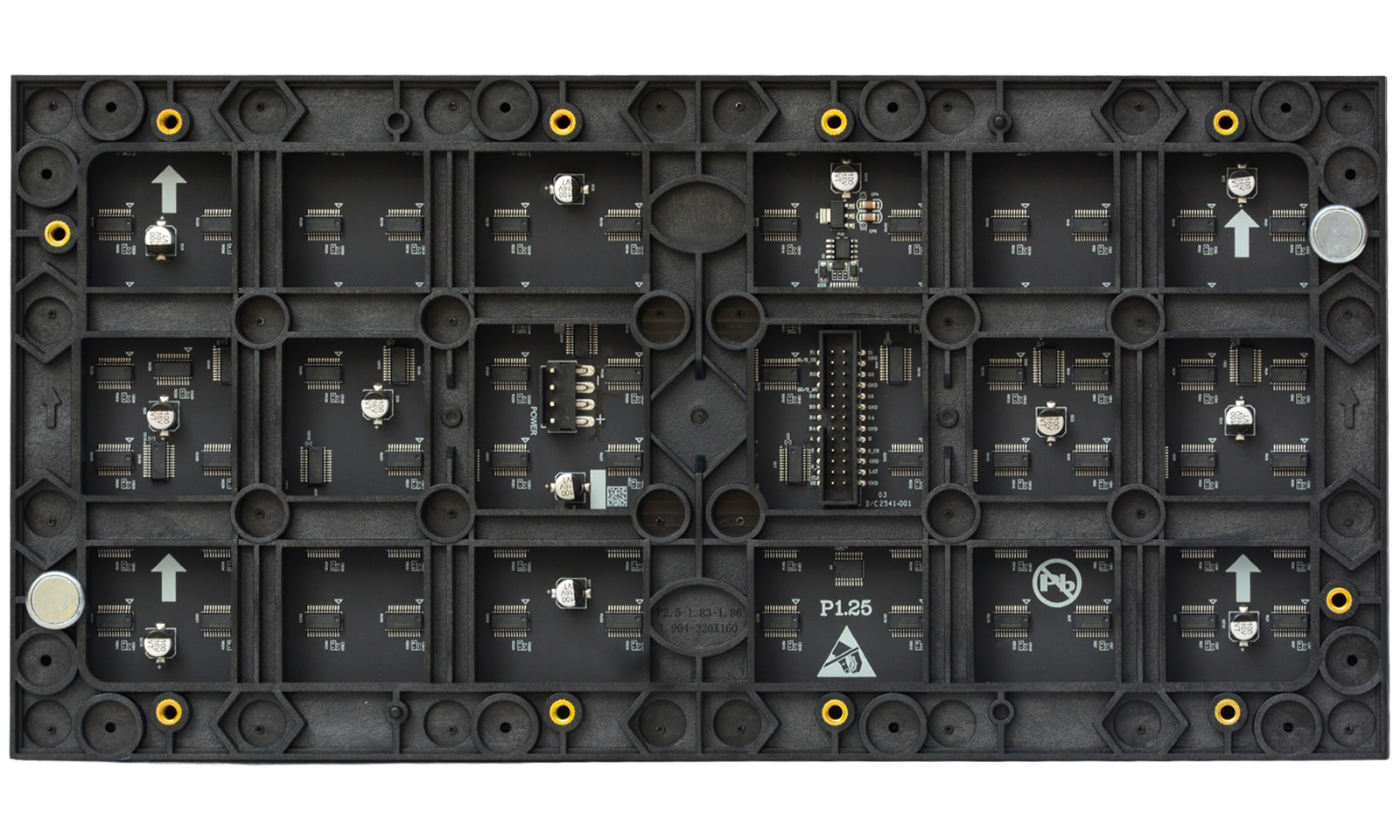

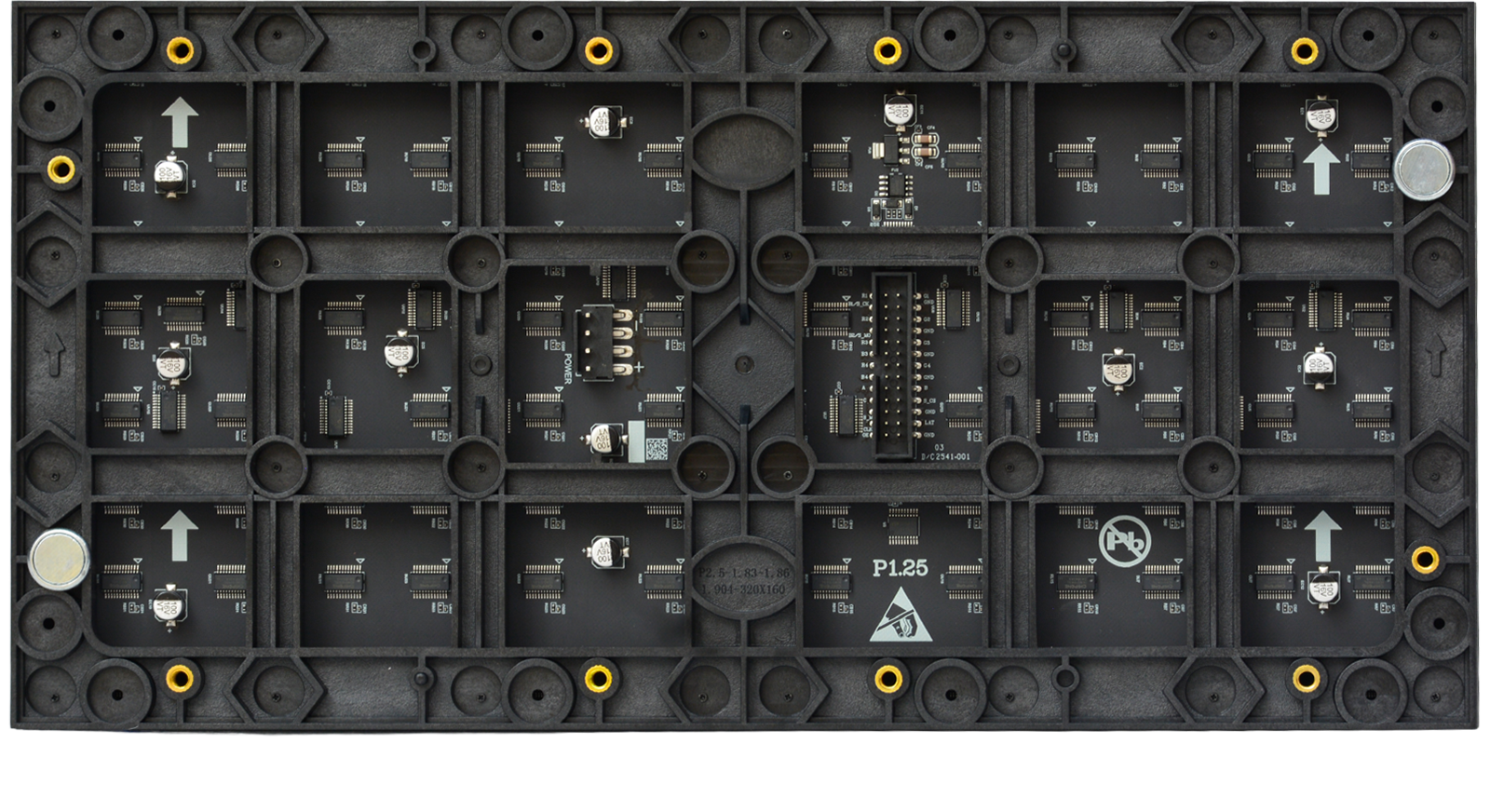

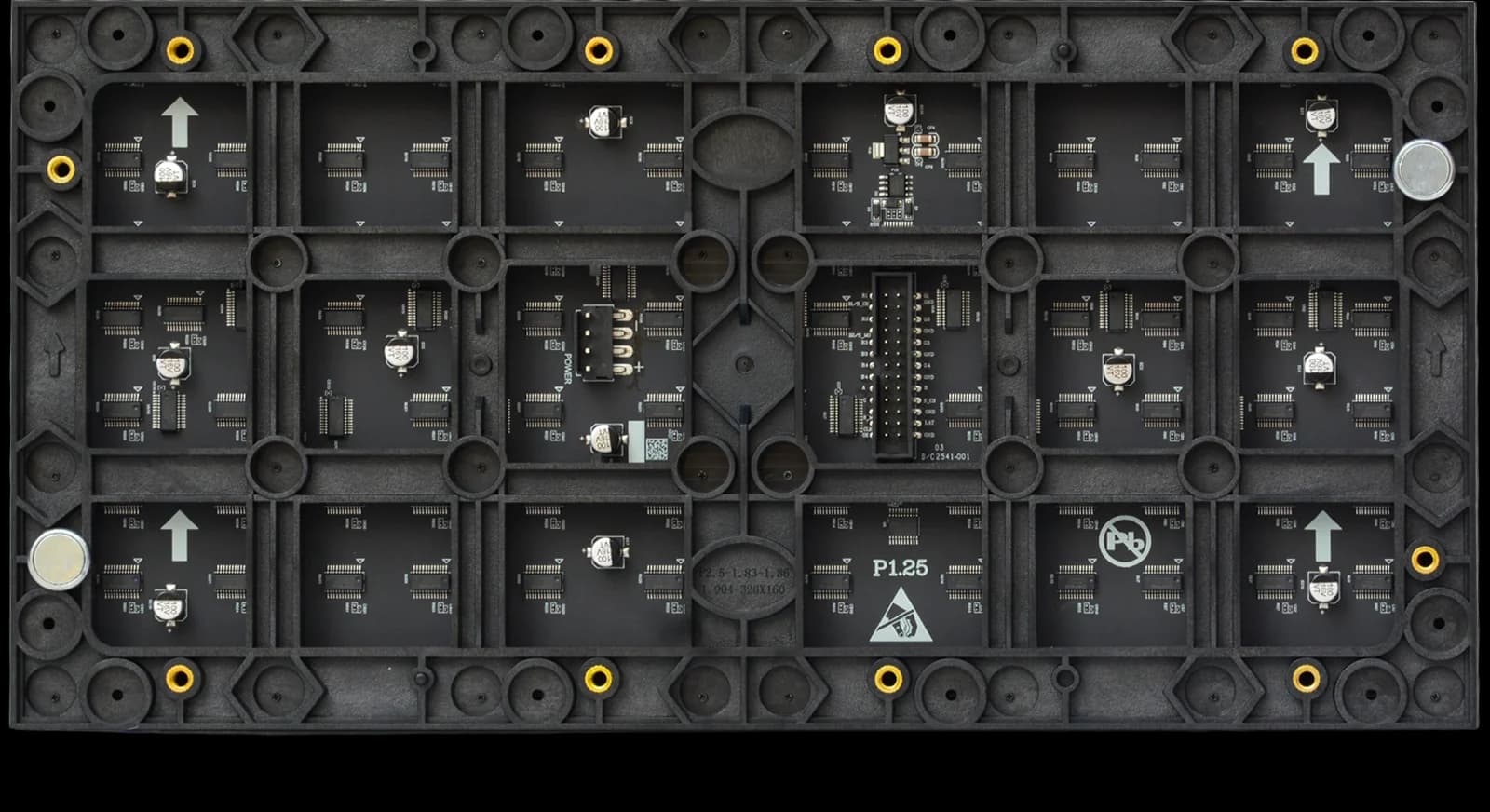

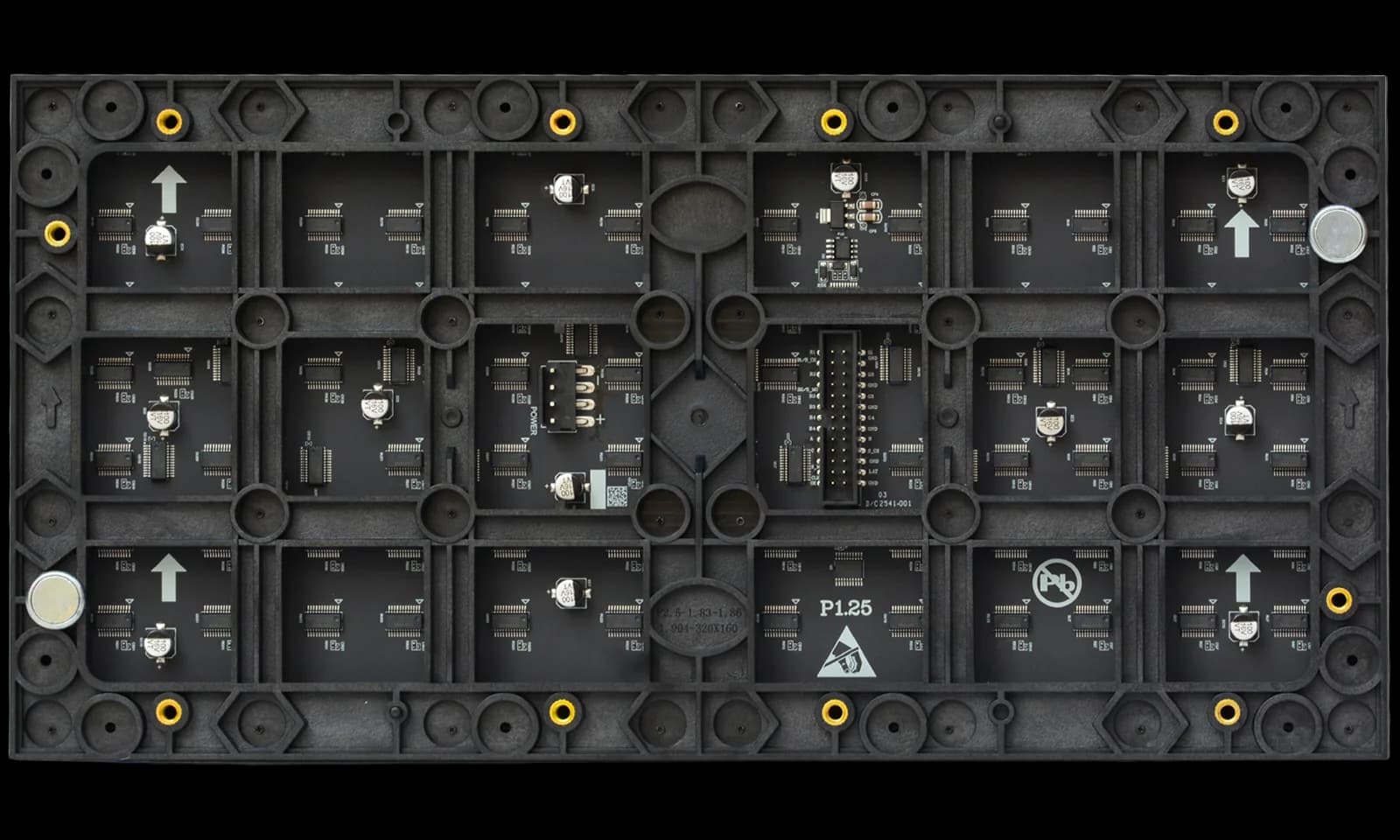

| Module Size | 320×160 mm |
| Module Resolution | 208×104 |

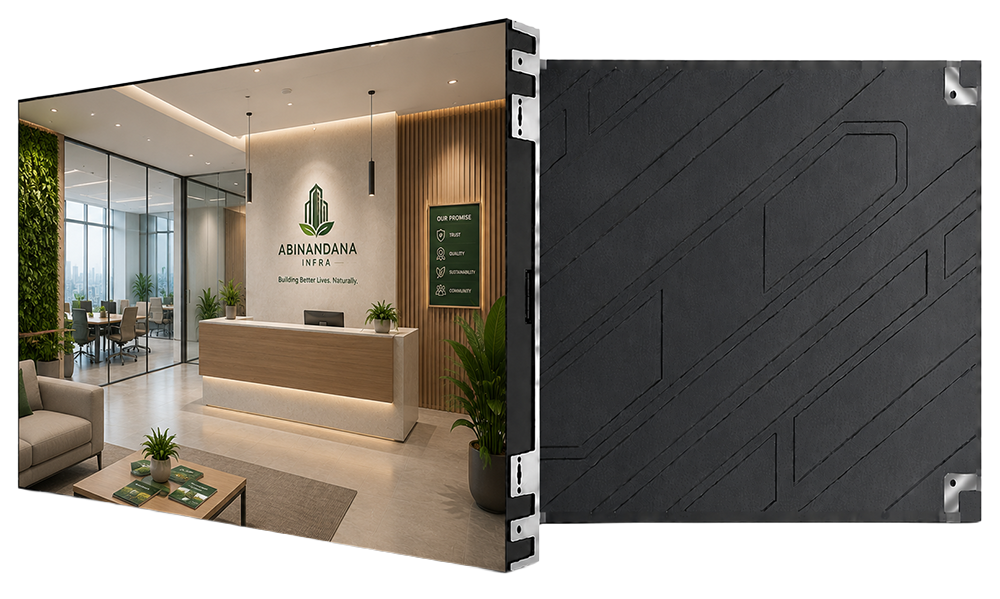

| Cabinet Size | 640×480 mm |
| Cabinet Resolution | 416×312 |
| Brightness | 800–1000 nits |
| Contrast Ratio | 8000:1 |
| Viewing Angle | 160°/160° |
| Refresh Rate | 3840Hz |
| Gray Scale | 14 bit |
| Scan Mode | 1/32 |
| Cabinet Weight | 6.5 kg |
| Max Power | 480W/m² |
| Avg Power | 160W/m² |
| Color Temperature | 3000–10000K |
| Protection | IP65 Front |
| Maintenance | Front |
| Lifetime | 100,000 hrs |
Engineered for High-Performance Indoor Applications
The P1.5 GOB LED Display is optimized for premium indoor environments requiring durable protection and seamless visual performance. It delivers reliable operation across corporate installations and mission-critical display applications.
- Ultra-fine pixel pitch for seamless close-viewing clarity
- GOB protection layer improves display durability performance
- High refresh rate ensures smooth visual playback quality
- Wide viewing angles deliver consistent visual performance
- Energy-efficient system supports stable long-term operation
Use Case / Content Display
- Corporate boardrooms (example: executive presentation displays)
- Control rooms (example: monitoring and surveillance screens)
- Broadcast studios (example: live production LED walls)
- Command centers (example: operational information displays)
- Premium installations (example: luxury indoor digital walls)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 1.5 mm
- Brightness: ≥800 nits
- Refresh Rate: ≥3840Hz
- Viewing Distance: ≥2 meters
- Cabinet Size: 600 × 337.5 mm
- Power Consumption: 180W (avg)
Final Feature Block
- Ultra-fine GOB technology for protected indoor visual clarity
- High refresh performance ensures seamless visual playback
- Durable protective surface improves long-term reliability
- Energy-efficient system supports continuous operation environments
- Modular cabinet structure enables scalable display installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
