P1.89 Fine Pitch Indoor LED Display
Indoor LED Display Solutions
Ultra Fine Pitch LED Display
Government Offices, Control Rooms, Indoor Installations
P1.89
SMD1515, Die-Cast Aluminum, High Refresh LED
Transforming Indoor Spaces with High-Resolution LED Displays
Our P1.89 indoor LED display is designed for environments that require clear visuals and reliable performance at close viewing distances. Ideal for government offices, educational institutions, and corporate environments, it delivers sharp visuals, balanced brightness, and seamless display quality.

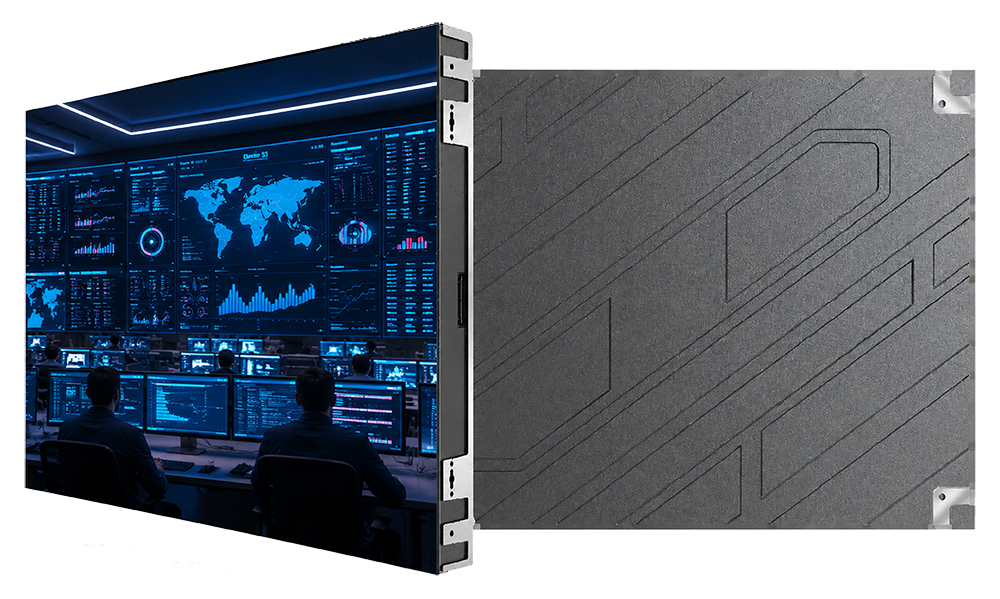

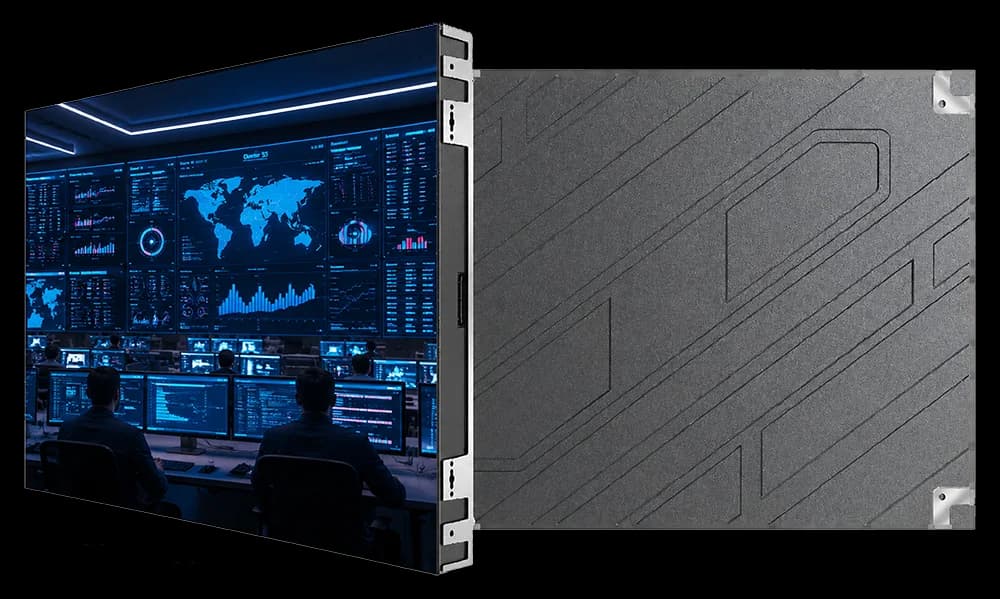

Built with advanced LED technology and a durable die-cast aluminum cabinet, this display ensures long-term reliability, energy efficiency, and easy maintenance. With a high refresh rate and consistent color output, it provides smooth and flicker-free visual experiences.
| Parameter | Specification |
|---|---|
| Placement | Indoor |
| Pixel Pitch(mm) | 1.89 mm |
| LED Configuration | SMD 3 in 1 |
| Light type | SMD1515 |
| rowspan | 1R1G1B |
| Module or Lamp make | LAMP / Hikvision / Qiangli / Changli / GKGD / Leyard |
| Driver IC | ICN / FM / SM /MBI |

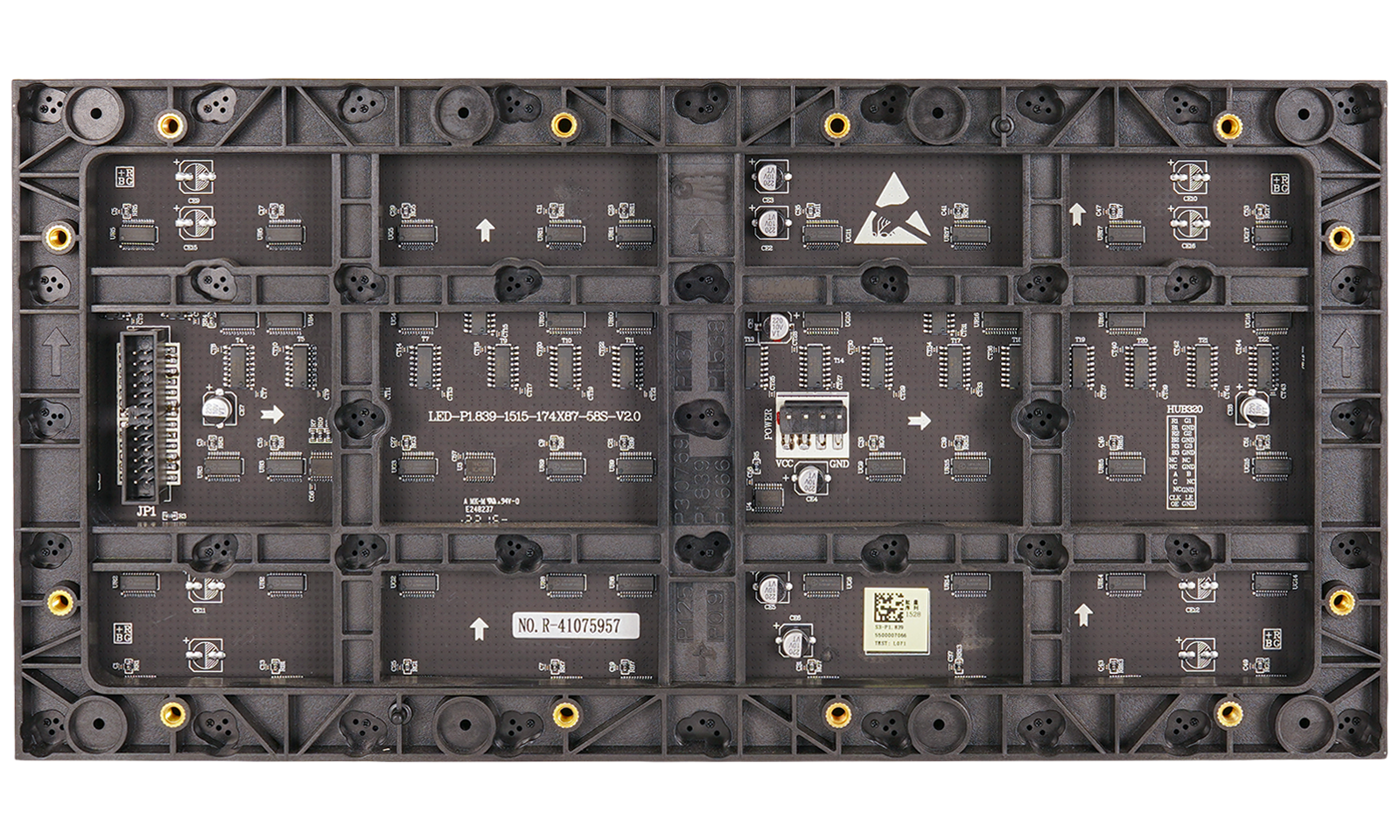

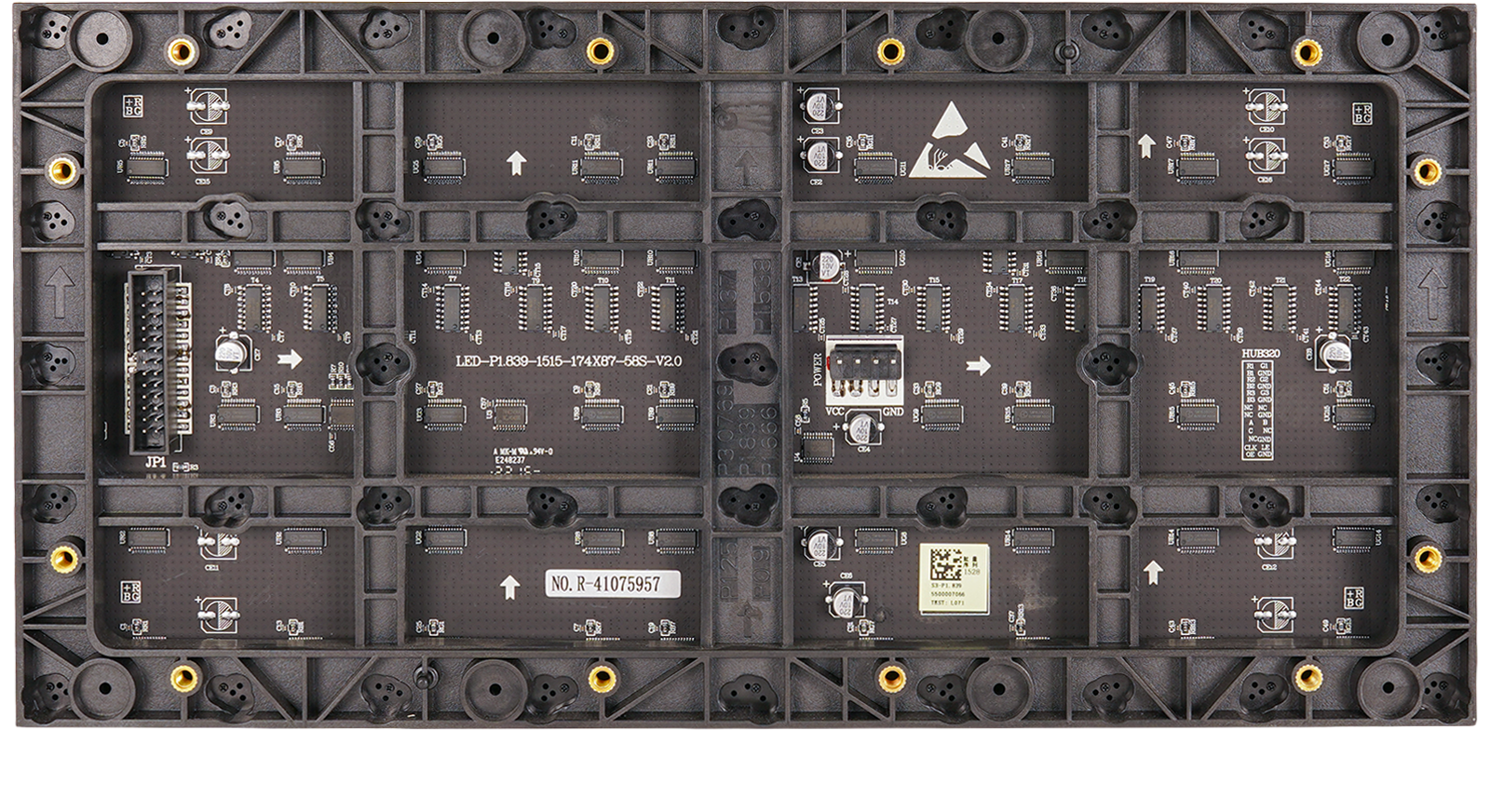

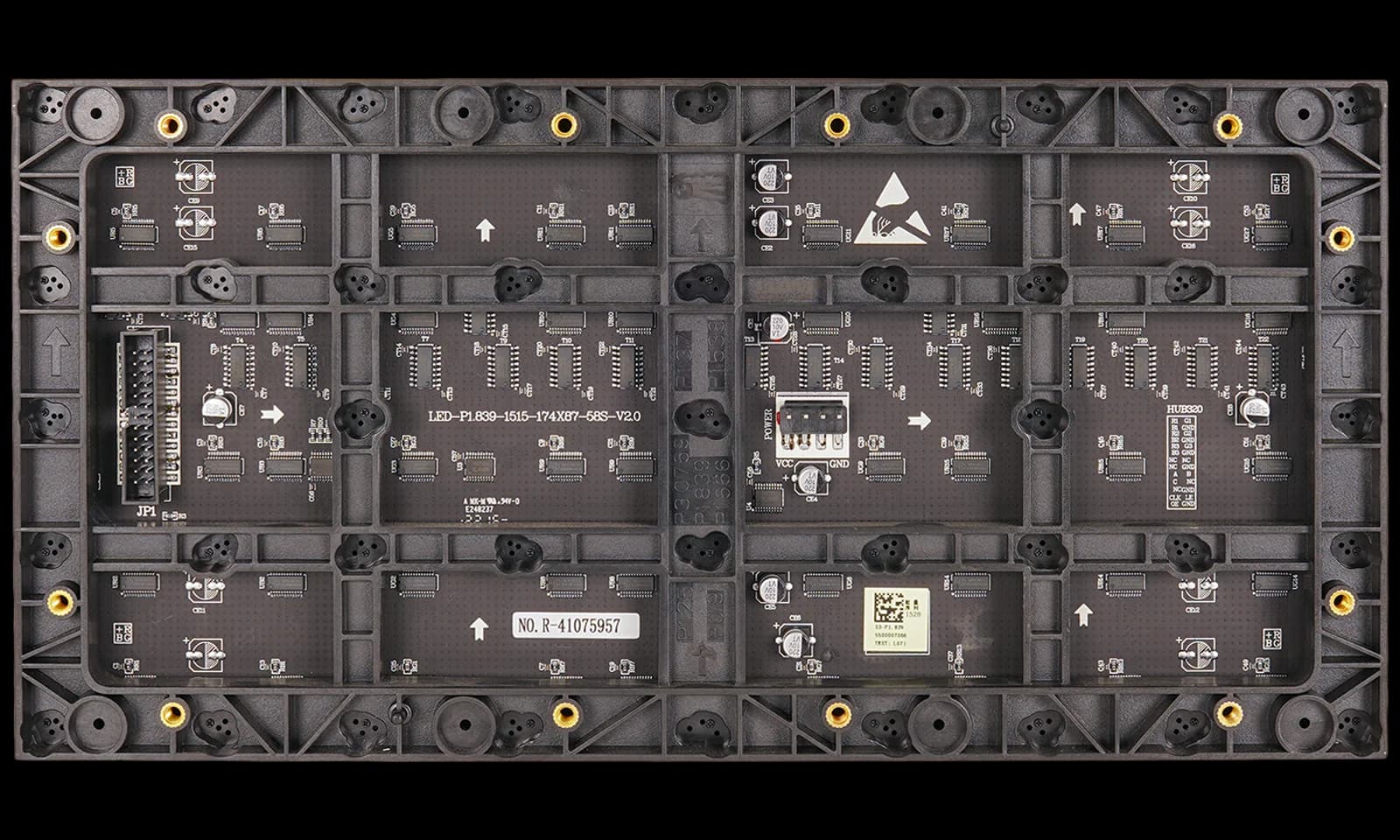

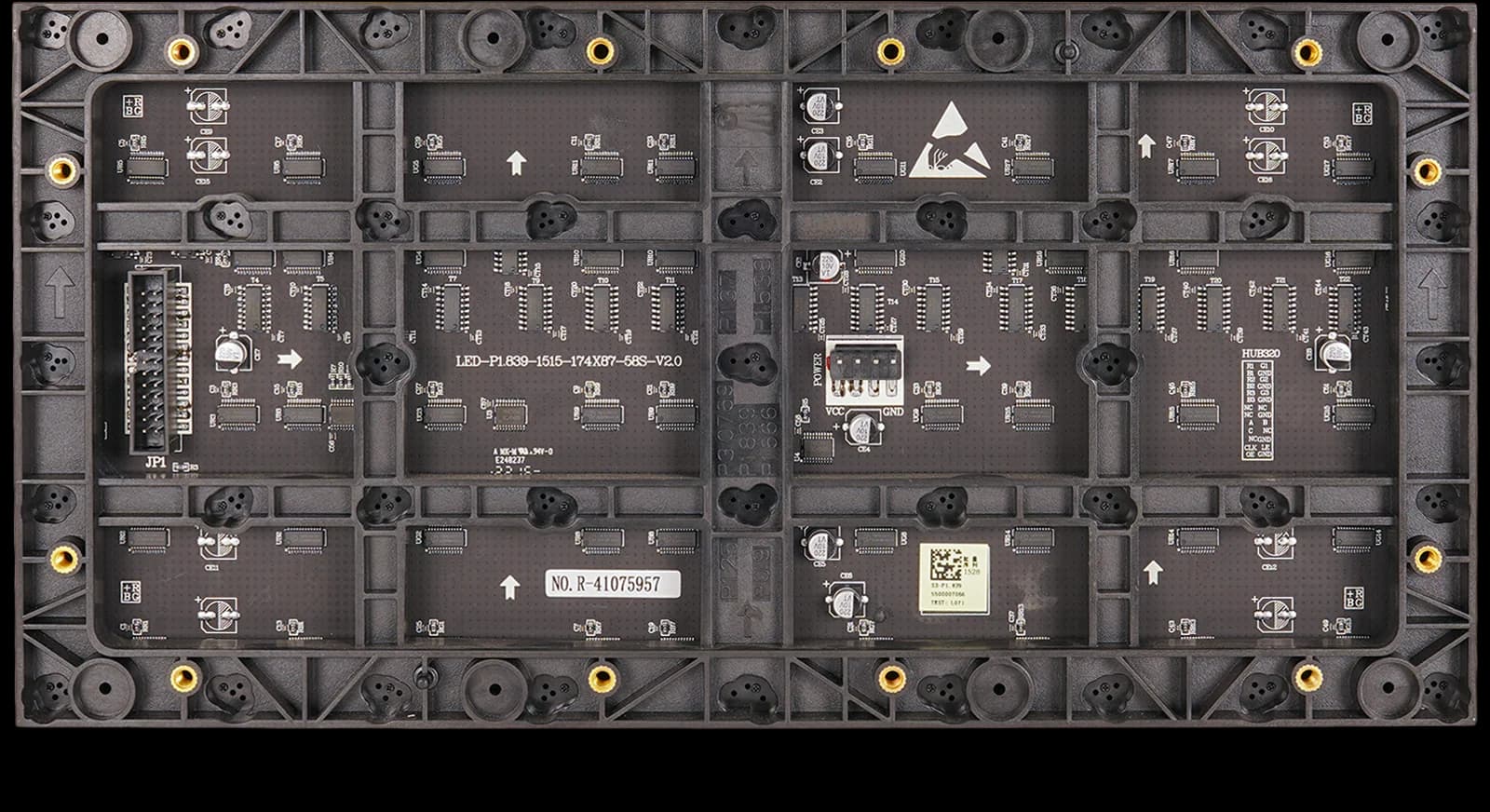

| Module Size(mm) | 320×160 |
| Module Resolution(dot) | 172×86 |
| Module Pixel | 14792 |
| Pixel Density (dots/m²) | 289444 |
| Best View distance | ≧1.89m |
| Brightness | 600–900 |
| View Angle | H≥160° & V≥140° |
| Gray Level | 16 bit |
| Refresh Rate | 3840 -7680 |
| Driving Mode | 1/43. |
| Refresh frame frequency | 60 Hz |
| Runing Temperature | 10°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% – 60% RH |
| Lifespan | 100,000H |
| Weight | 0.46 kg |
| Contrast ratio | ≥5000:1 |
| Working voltage | 5V |
| Maximum current of module | 23 W |
| Average power of module | 7 W |
Engineered for High-Performance Indoor Applications
The P1.89 LED display is optimized for indoor environments requiring high clarity and consistent performance. It is suitable for both professional and public-facing applications, delivering reliable visuals with minimal maintenance.
- Fine pixel pitch for clear close-range viewing
- High brightness with consistent color output
- Smooth visuals with 3840Hz refresh rate
- Durable die-cast aluminum cabinet design
- Full front service for easy maintenance
USE CASE / CONTENT DISPLAY
- Government offices (example: public announcement displays)
- Classrooms (example: smart learning screens)
- Corporate offices (example: dashboards and communication screens)
- Conference rooms (example: presentations and meetings)
- Digital signage (example: indoor information displays)
TECH STACK / SPEC STYLE
Specifications
- Pixel Pitch: 1.89 mm
- Brightness: 700 nits
- Refresh Rate: 3840 Hz
- Viewing Distance: 1.5–2.5 meters
- Panel Size: 640 × 480 mm
- Power Consumption: 150W (avg)
FINAL FEATURE BLOCK
- Clear visuals for professional indoor environments
- Energy-efficient operation with stable performance
- Seamless display with wide viewing angles
- Centralized content management system support
- Flexible modular installation design
ENGINEERED FOR GLOBAL LED EXCELLENCE
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
