P8 Long-Distance Outdoor LED Display
Outdoor LED Display Solutions
Long-Distance Outdoor LED Display
Outdoor Advertising, Stadium Displays, Public Installations
P8

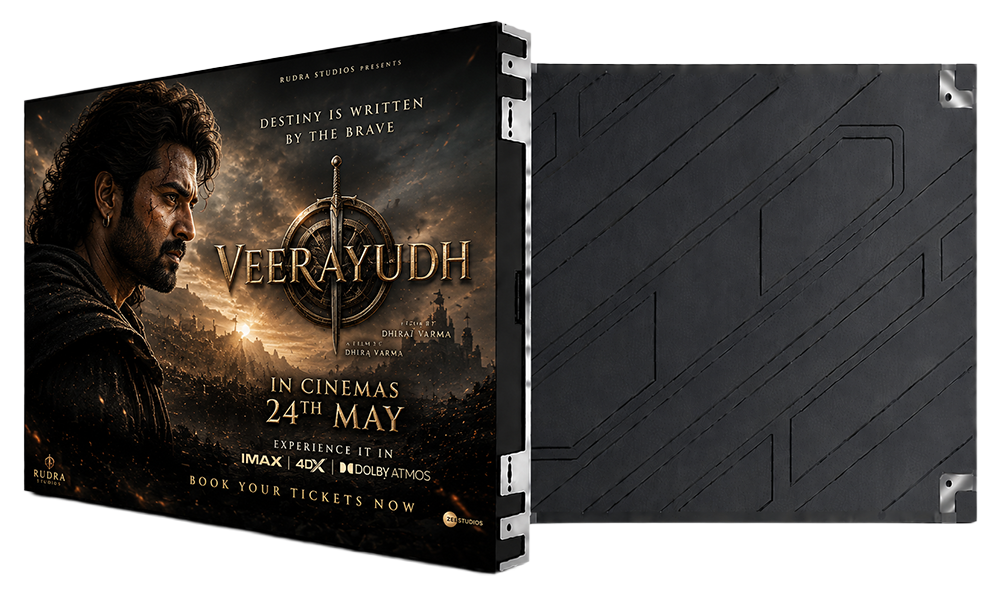

SMD2727, Outdoor IP65 Cabinet, High Refresh LED
Transforming Outdoor Spaces with High-Visibility LED Displays
Our P8 outdoor LED display is designed for outdoor environments requiring strong brightness, reliable durability, and clear long-distance visibility. Ideal for outdoor advertising, stadium displays, and public installations, it delivers vibrant visuals with stable performance across varying environmental conditions.
Built with advanced outdoor-grade LED technology and an IP65-rated cabinet structure, this display ensures long-term reliability, energy efficiency, and seamless operation. Its high refresh rate and wide viewing angles provide smooth and flicker-free visuals even under direct sunlight.
| Parameter | Specifications |
|---|---|
| Placement(Outdoor) | Outdoor (MS/Die Cast - IP65) |
| Pixel Pitch(mm) | 8mm |
| LED Configuration | SMD 3 in 1 |
| Light type | SMD2727/SMD3535 |
| rowspan | 1R1G1B |
| Module or Lamp make | LAMP / Hikvision / Qiangli / Changli / GKGD / Leyard |
| Driver IC | ICN / FM / SM /MBI |

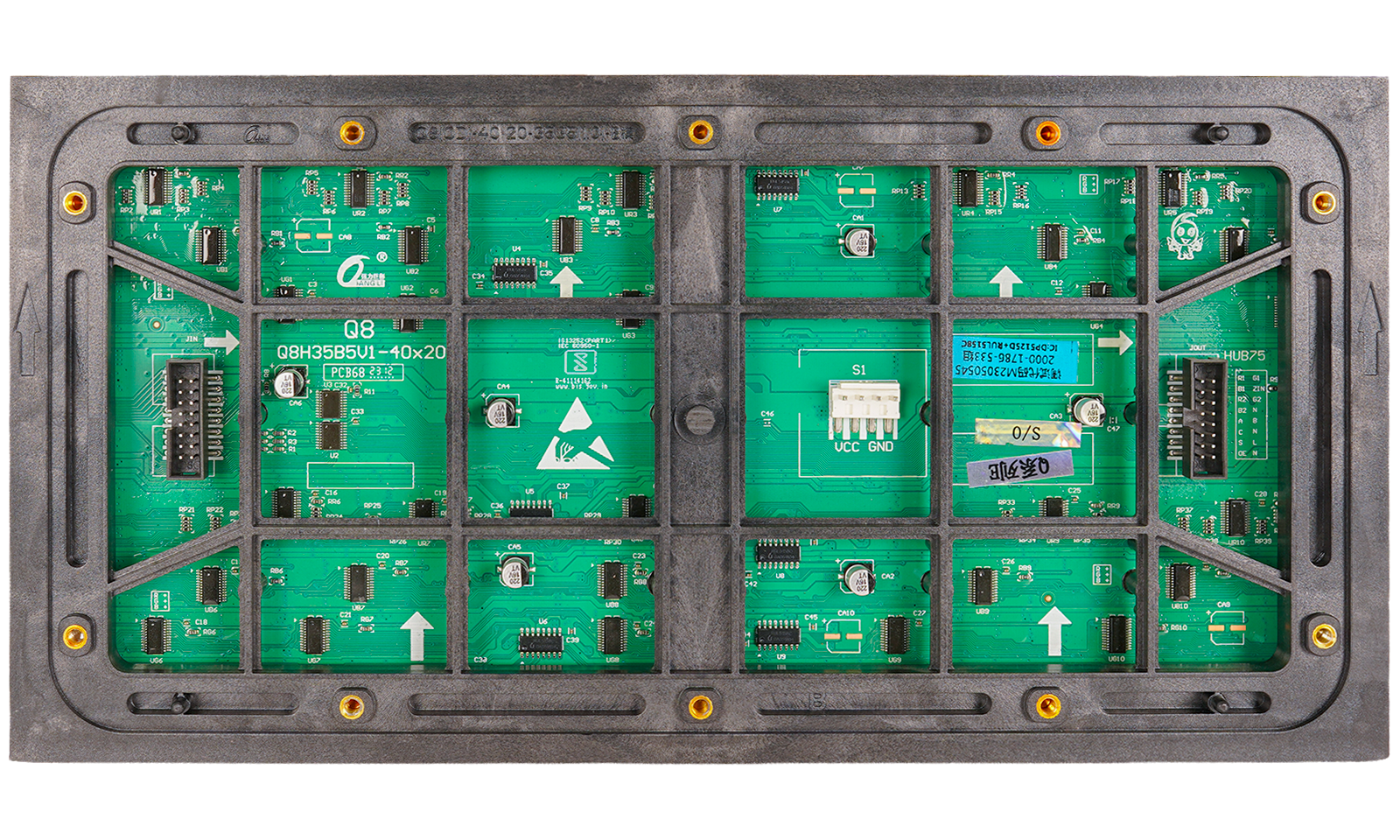

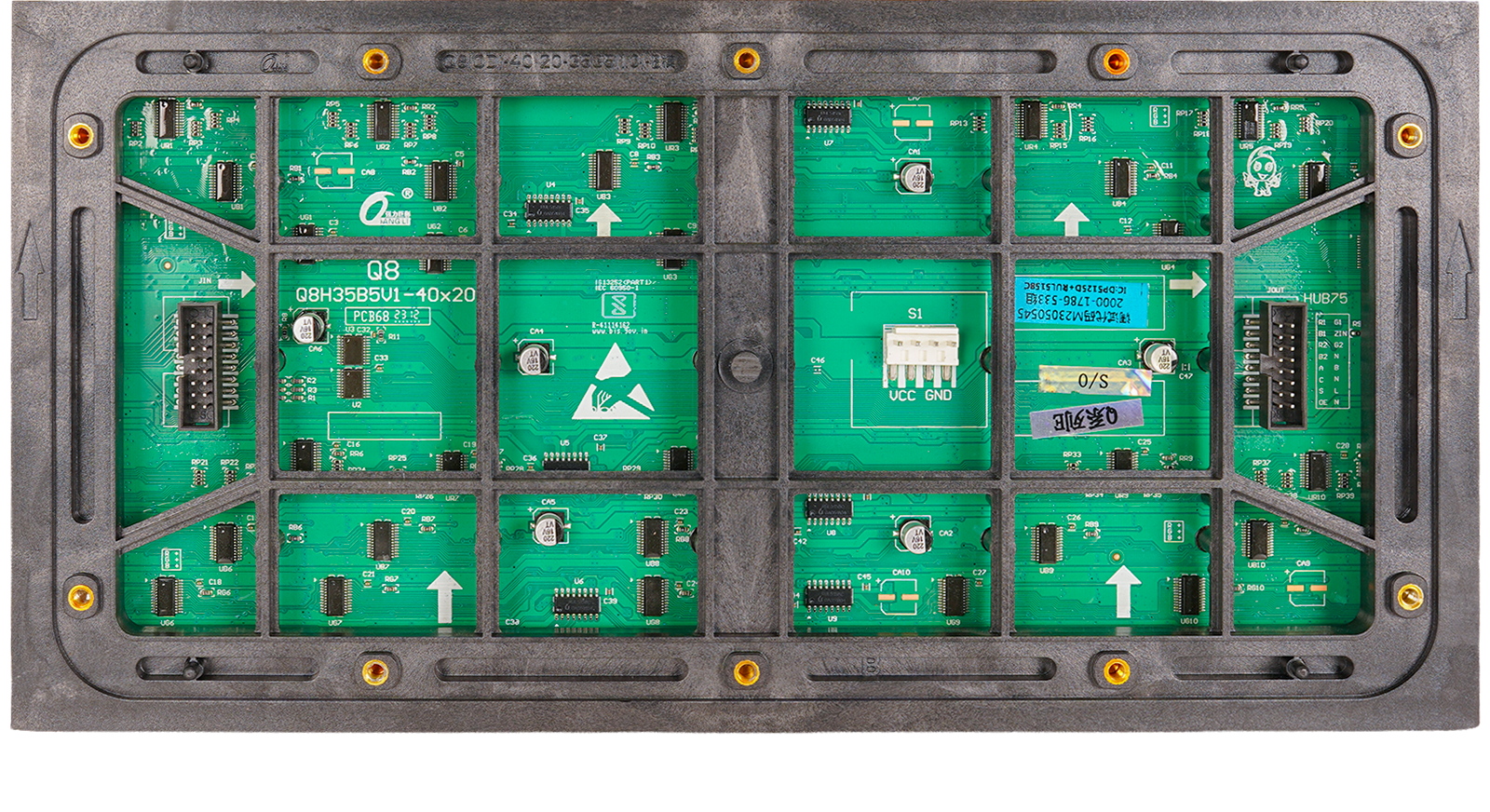

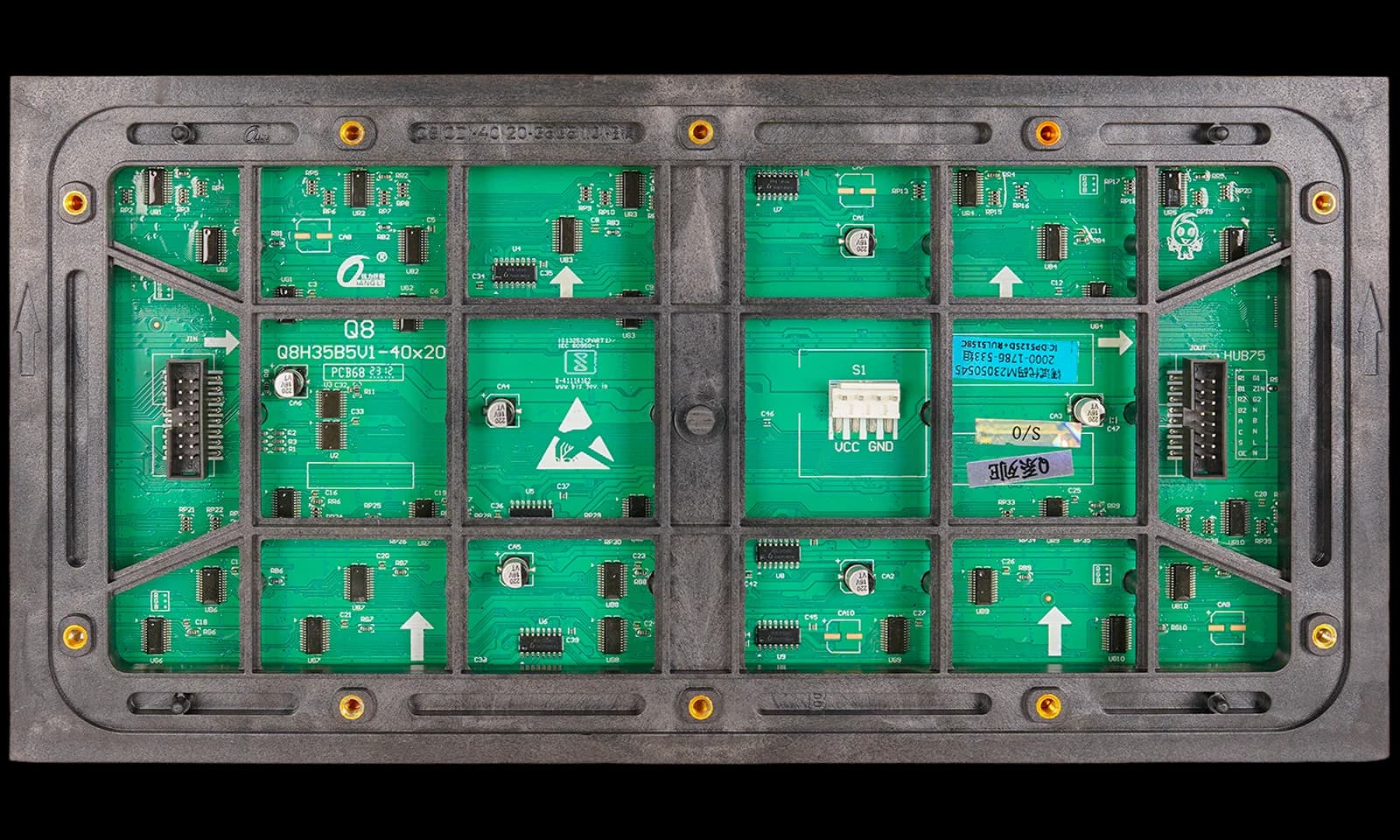

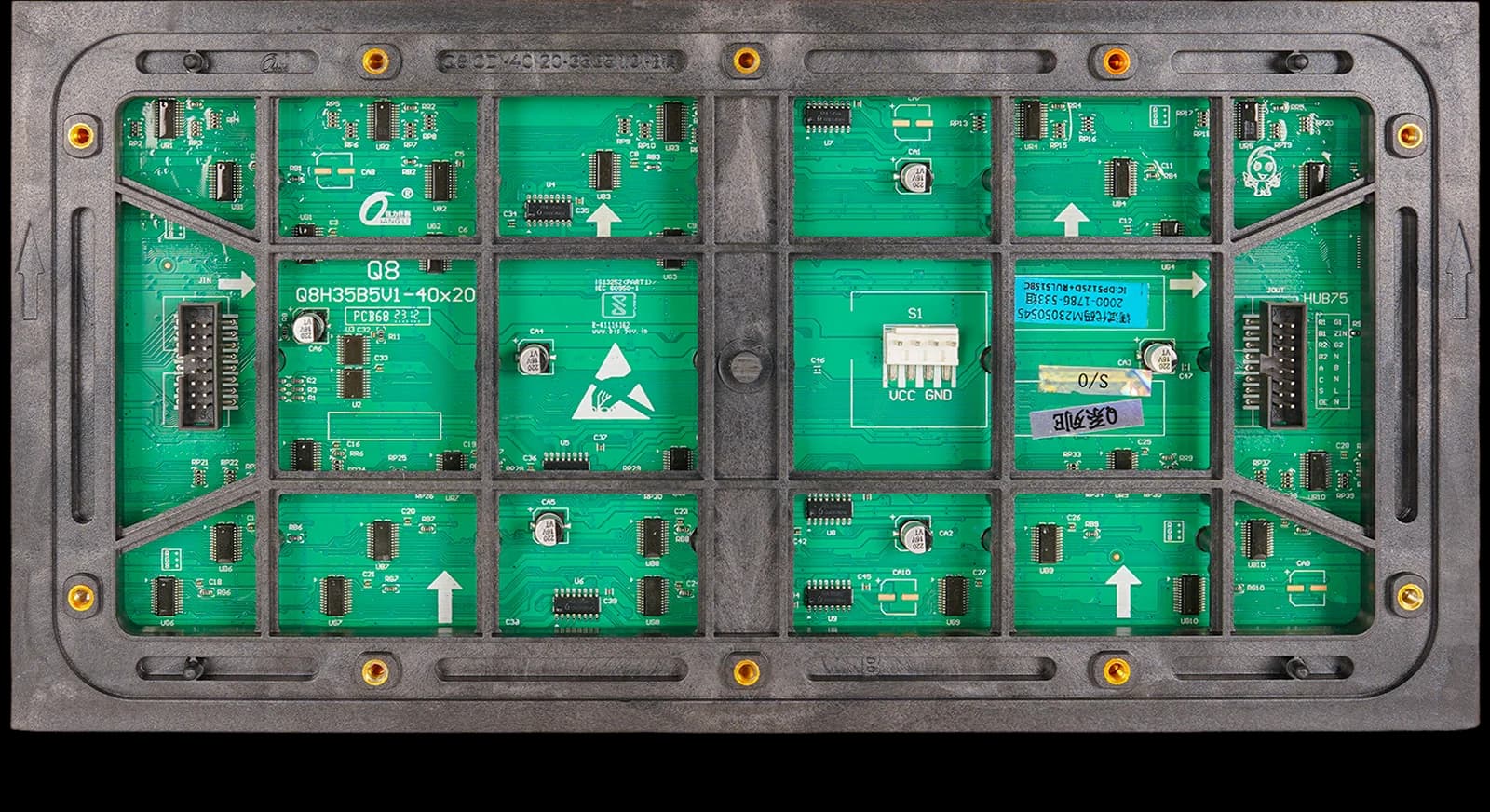

| Module Size(mm) | 320*160 |
| Module Resolution(dot) | 40x20 |
| Module Pixel | 800 |
| Best View distance | ≧8m |
| Brightness | ≥4500cd/m2 |
| View Angle | H≥160° & V≥140° |
| Gray Level | 14-16 bit |
| Refresh Rate | >3840 - ≥7680Hz |
| Driving Mode | 1/5 scan |
| Refresh frame frequency | 50~60Hz |
| Power Comsumption(max/sqm) | 744W/m2 |
| Power Comsumption(Avg) | 372W/m2 |
| Runing Temperature | –20℃～70℃/RH |
| Storage Temperature | –35℃～+80℃ |
| Humidity | 10% ～95% |
| Lifespan | 100,000H |
| Module size | 320mm×160mm×18mm |
| Weight | 430±5g |
| Contrast ratio | 8000:1, |
| Working voltage | 5V |
| Maximum current of module | 7.5A |
| Average power of module | 19W |
| Maximum power of Module | 38W |
Engineered for High-Performance Outdoor Applications
The P8 LED display is optimized for outdoor environments requiring balanced long-distance visibility and reliable performance. It delivers high brightness, stable visuals, and durable operation across commercial and public outdoor installations.
- Long-distance pixel pitch designed for outdoor visibility
- High brightness ensures clear daylight display performance
- Smooth visuals with ultra-high refresh rate technology
- Rugged IP65 cabinet structure for outdoor durability
- Reliable performance with energy-efficient operation systems
Use Case / Content Display
- Outdoor billboards (example: roadside advertising displays)
- Stadium installations (example: sports perimeter LED screens)
- Public information boards (example: city announcement displays)
- Commercial branding (example: outdoor business signage)
- Event advertising (example: outdoor promotional displays)
Tech Stack / Spec Style
Specifications
- Pixel Pitch: 8 mm
- Brightness: ≥5500 cd/m²
- Refresh Rate: ≥3840Hz – 7680Hz
- Viewing Distance: ≥8 meters
- Module Size: 320 × 160 mm
- Power Consumption: 360W (avg)
Final Feature Block
- Optimized for large outdoor advertising environments
- High brightness for superior daylight visibility performance
- Durable weatherproof structure for outdoor reliability
- Seamless visuals with stable refresh rate output
- Flexible modular design for scalable outdoor installations
Engineered for Global LED Excellence
- Global manufacturing expertise across China and India ensuring quality
- Advanced LED components deliver high brightness and color accuracy
- High refresh rate ensures smooth and flicker-free visuals
- Precision PCB and IC engineering ensure stable display performance
- Durable cabinet structures designed for long-term reliable performance
- Energy-efficient systems reduce power consumption and operational costs
- Modular LED design enables flexible installation and scalability
- Consistent visual output ensures uniform brightness and seamless viewing
